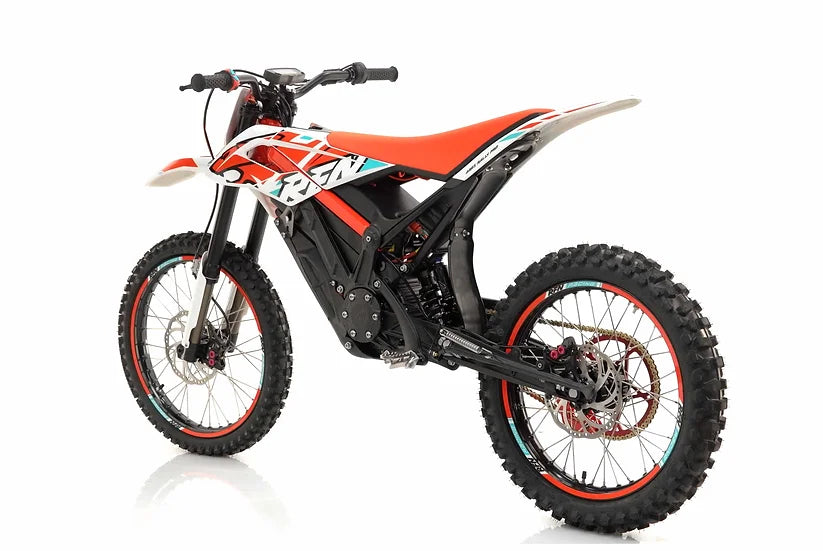

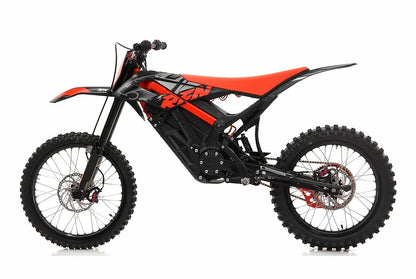

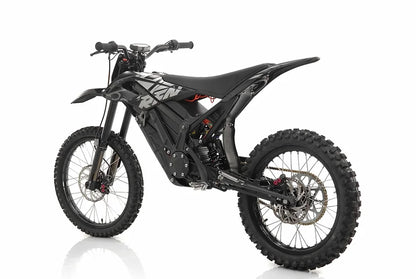

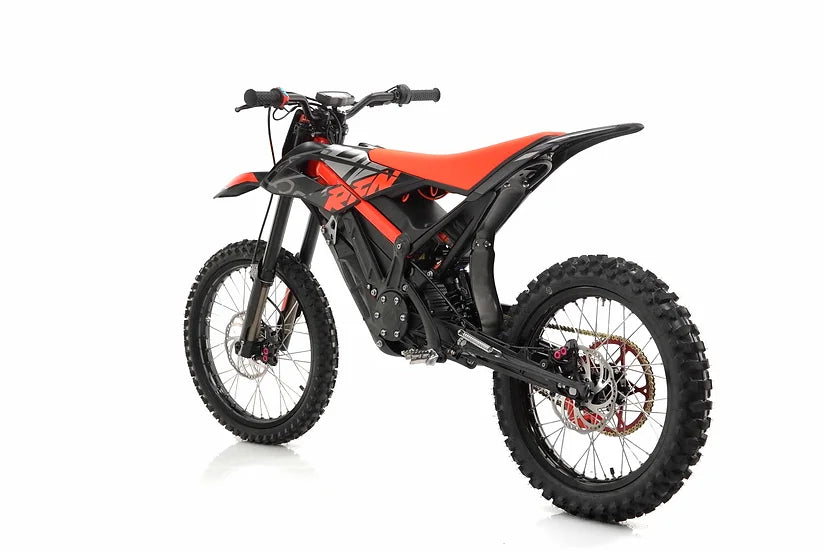

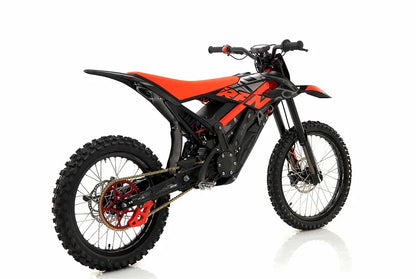

RFN Ares Rally Electric Dirt Bike - 12.5KW 74V 35AH Premium Off-Road

RFN Ares Rally - Premium Electric Off-Road Performance

Experience exhilarating power and precision with the RFN Ares Rally electric dirt bike. Meticulously engineered to conquer the most challenging terrains, this premium e-moto combines robust yet lightweight construction with cutting-edge technology. From rugged trails to steep inclines, the Ares Rally fearlessly tackles any adventure with unmatched style and performance.

Performance Specifications:

• 12.5KW Peak Power - 5KW rated with 12.5KW maximum output for explosive acceleration
• 65km/h Top Speed - (40MPH) High-performance capability for experienced riders
• 74V 35AH LG Battery - Premium 2480Wh LG 21700 lithium cells with removable design
• 160km Range - Exceptional distance capability (test conditions: 75kg load, 20km/h, 25°C)
• 2-3 Hour Fast Charging - Quick charge function for minimal downtime
• 305 N·m Rear Wheel Torque - Massive torque delivery for technical terrain

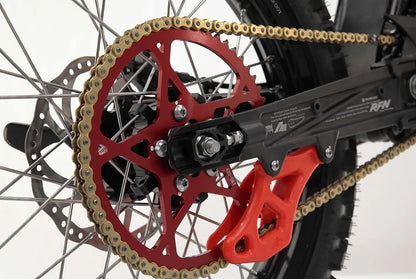

• 58 N·m Motor Torque - Direct drive power with 13T-58T sprocket configuration
• Lightweight Construction - 68kg (150lbs) total weight, 120kg (264lbs) max load

Premium Engineering Features:

• 6082 Aluminum Frame - Extruded, forged, and CNC machined with steel reinforcement
• Advanced Suspension System - 200mm front travel (USD, fully adjustable), 74mm rear mono-shock
• 4-Piston Hydraulic Brakes - Front and rear 210mm discs for confident stopping power
• Premium Wheel Configuration - 19" front / 18" rear with triple-chamber 7050 aluminum rims
• CST Off-Road Tires - Front 70/100-19, Rear 90/100-18 for maximum traction
• Forged CNC Hubs - RFN aluminum hubs with 20mm axles
• 6061 Aluminum Handlebar - 760mm length for optimal control
• Energy Regeneration - Air-cooled PMSM motor with regenerative braking

Intelligent Ride Modes:

• Mode 1 - Tortoise: Energy conservation mode, 25km/h max, 3.5 hours battery range
• Mode 2 - Rabbit: Enduro/trail riding mode, 1-2 hours riding time
• Mode 3 - Rocket: Track/race mode with maximum torque and speed
• Mode 4 - Reverse: Limited to 9km/h for maneuvering

Chassis & Geometry:

• Wheelbase: 1330mm (52.36") for stable, predictable handling
• Seat Height: 860mm (33.86") accessible for most riders
• Fork Angle: 340mm with 15mm offset in triple clamps, 45mm in forks
• Trail: 111mm (4.37") for precise steering response

Premium Components:

State-of-the-art sine wave controller with best-in-class power density and advanced motor control algorithms ensures smooth, efficient power delivery. The removable battery can be charged on or off the bike for maximum convenience. CE certified for quality assurance.

Built for Adventure: Whether you're a seasoned off-road enthusiast or thrill-seeking adventurer, the RFN Ares Rally elevates your riding experience to unprecedented levels. Discover the freedom, power, and precision of premium electric off-road exploration.

Conquer any terrain with confidence - the RFN Ares Rally delivers premium engineering for extreme off-road performance.
