Chimera Short Ram Air Intake System - Honda Monkey 125 (2022+)

This intake would fit only the 5-speed Monkey 125, which is 2022+, it will not fit the previous year.

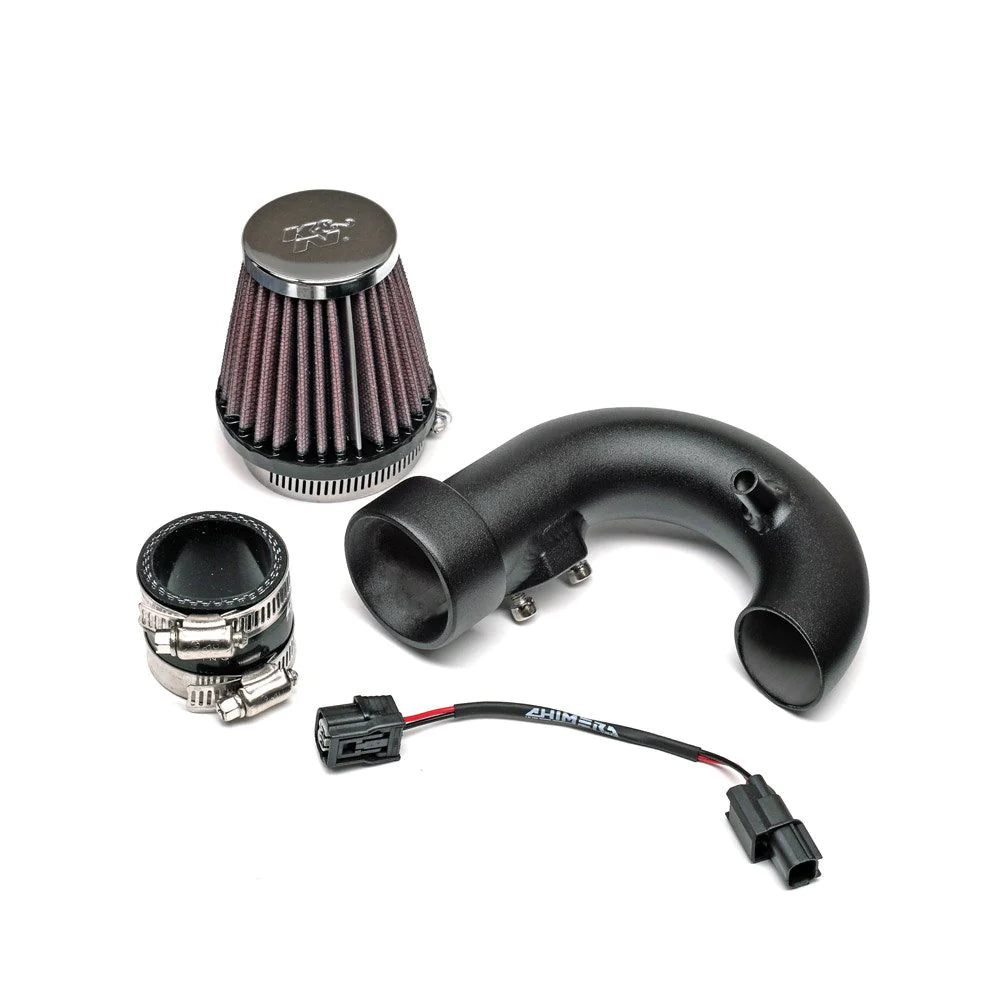

Chimera Short Ram Intake kit ONLY INCLUDES THE FOLLOWING ITEMS:

• Chimera Short Ram Intake Pipe (2022+ Honda Monkey 125 JB03. 5 Speed)
• Chimera V2 IAT Sensor Extension Harness
• Chimera 3 Ply Silicone Intake Coupler
• 2x Hose Clamp

OPTIONAL ITEMS *PLEASE SELECT FROM THE PRODUCT ADDONS BOX OPTIONS TO COMPLETE THE SYSTEM*:

• Chimera CH-1307 Universal Cone Air Filter (Pre-oiled with lifetime warranty)
• Sprint Filter Universal Water Proof Air Filter
• Chimera Engineering Water Resistance Filter Wrap (For CH-1307)

INSTALLATION VIDEO

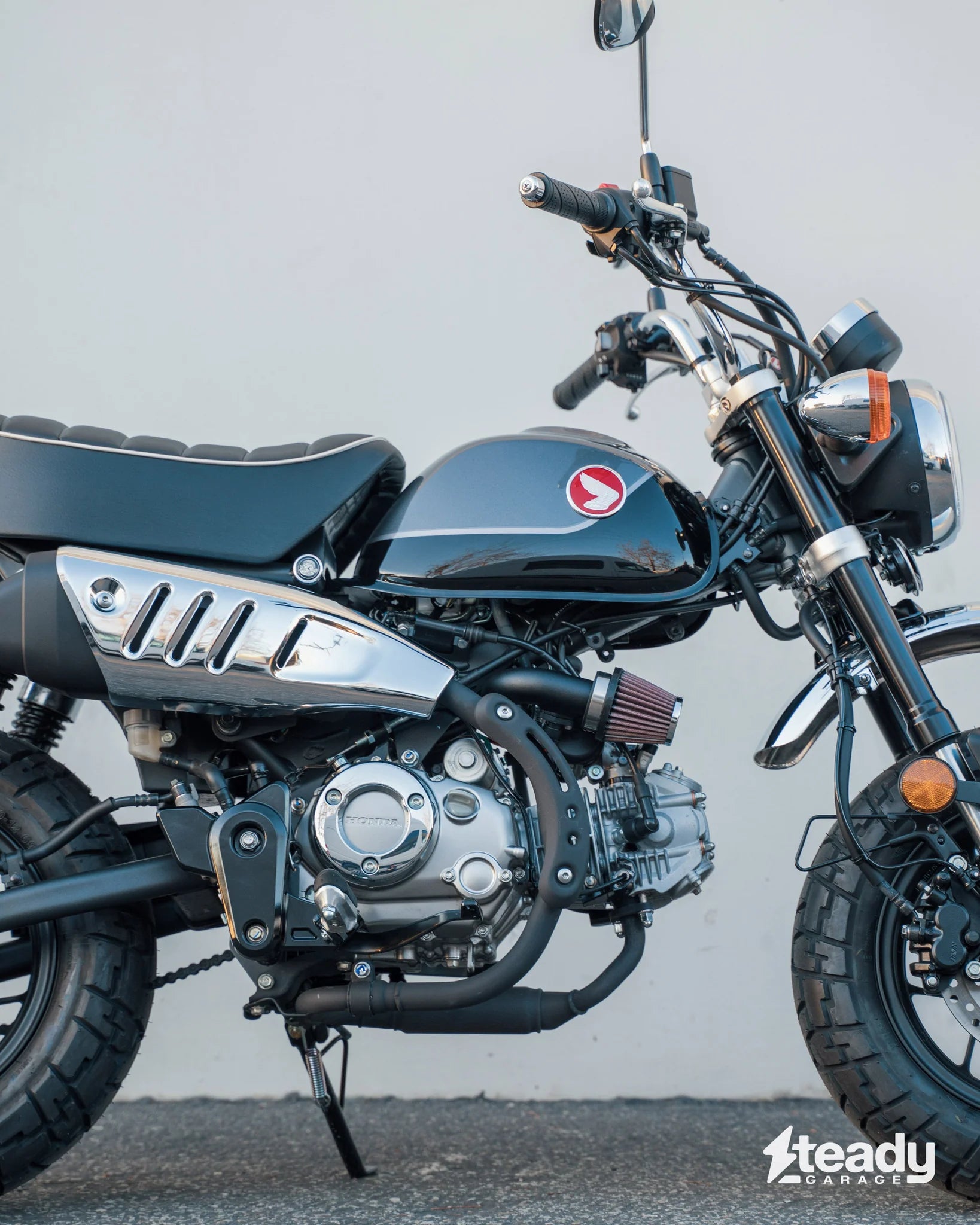

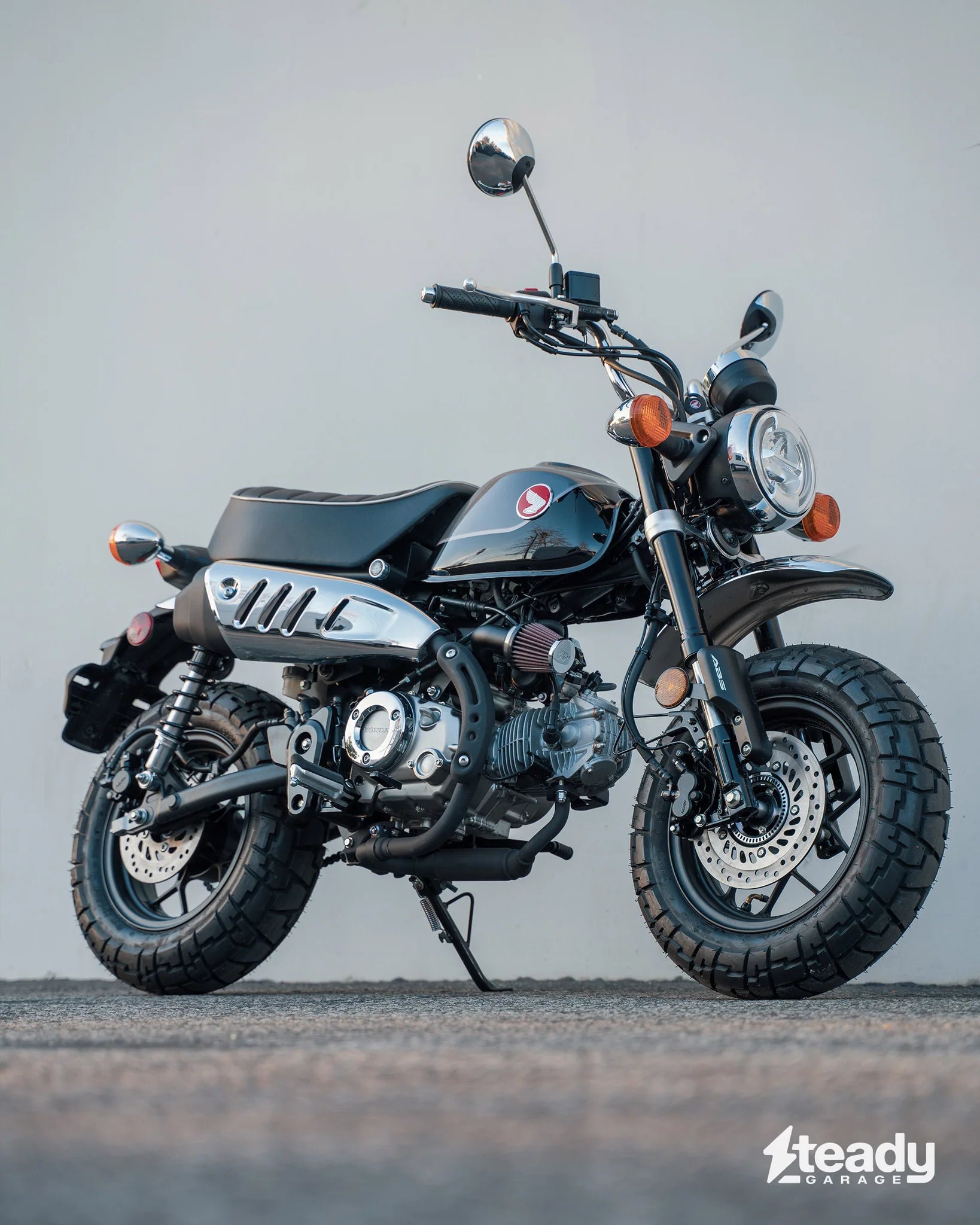

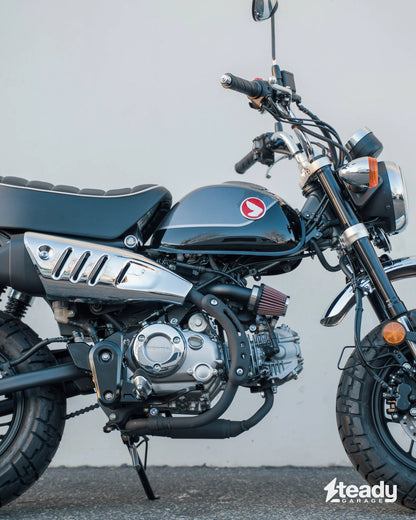

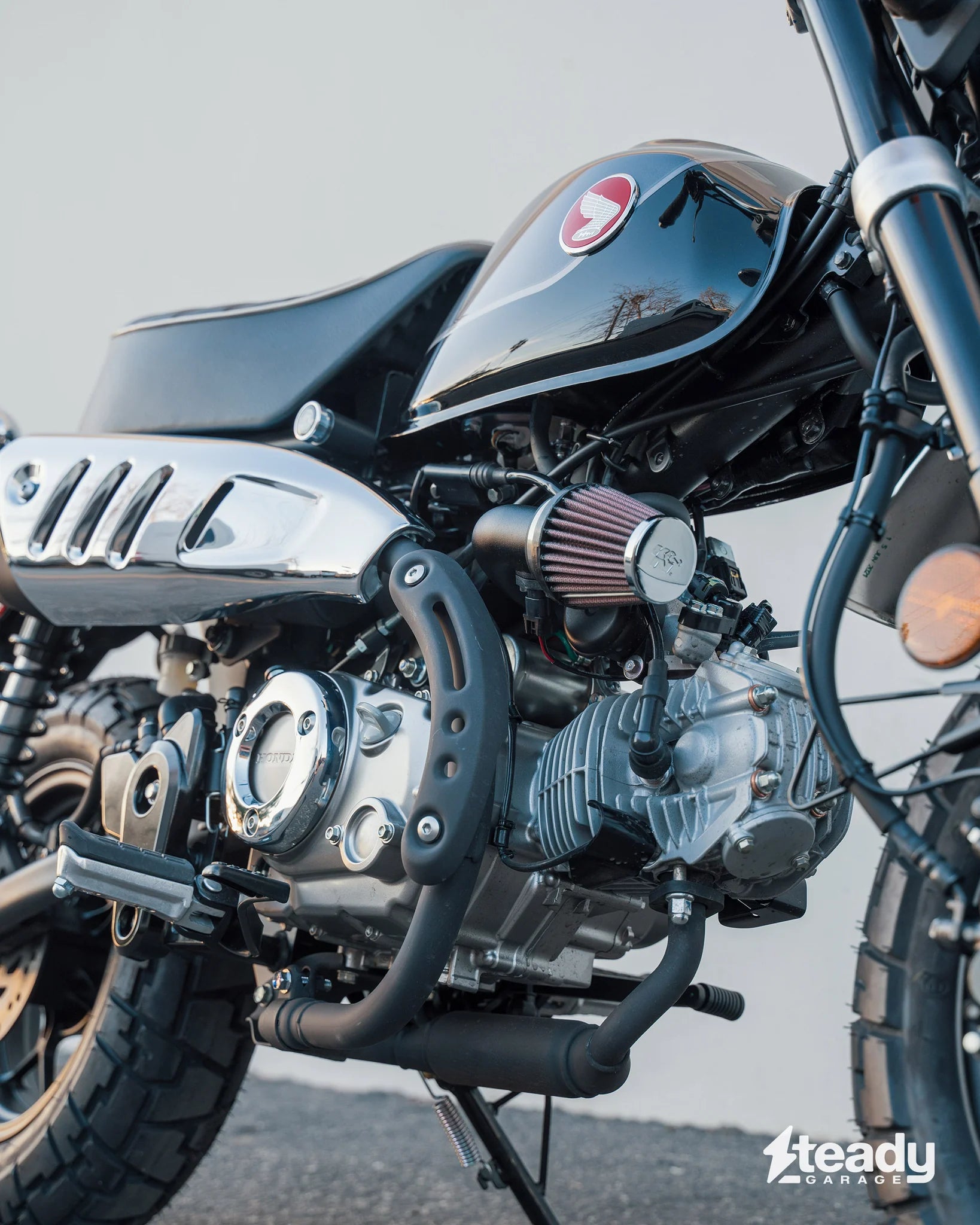

Chimera Engineering Short Ram 2022+ Honda Monkey 125 intake system will directly replace the entire factory air box without the need to modify anything! Chimera Short Ram intake is positioned to allow a more direct, cooler, and fresher air into your engine, giving you better throttle response and better performance. Increase airflow and at the same time, get a nice deep throaty intake sound while you ride around! When it comes down to race time, you have the option to remove the air filter and expose a velocity stack/air snorkel to increase airflow! Made from aluminum and powder-coated textured black for the final finish.

Chimera Engineering Short Ram Intake has been proven over and over again to increase HP without harming torque! This should the first thing to do on your Honda Grom!

Made in the USA! *PATENT PENDING*

OPTIONAL K&N Pre-charger (see drop-down menu): for those that want to keep their K&N air filters in tip-top condition! The K&N PreCharger is a specially designed filter wrap made to extend the service interval of your K&N Filter when used in very dusty conditions. They are made from durable polyester material containing uniform micron openings. The PreCharger will stop small dirt particles; yet add little restriction to the airflow of the filter. The PreCharger is designed to be run dry and can be cleaned with K&N Filter Cleaner.

Note:

When installing the short ram intake, make sure the battery is unplugged. Before plugging the battery back on, make sure the IAT sensor is connected, otherwise, a check engine light would appear if you forget to plug in the IAT sensor. Resetting the ECU is recommended to erase the existing parameter and refresh itself to the new change. Please refer to the service manual for ECU reset. Like any aftermarket air intake system for the automotive and power sports industry, not recommended to be used in rain.

Sprint Filter Waterproof Air Filter Option: Sprint air filter overall size is a lot larger than the K&N air filter. Since the Sprint Filter is taller than the K&N air filter, depending on your intake placement, you may need to adjust and position the intake to your preference.

INSTALLATION TIPS:

1. Install the coupler onto the throttle body first with the hose clamps positioned to where it's easily accessible.
2. Transfer the IAT sensor from the OEM airbox to the Chimera Short Ram Intake Tube
3. Install the Chimera intake tube onto the throttle body coupler, install the breather hose, cutting is NOT needed! Loop the hose right beneath the frame.
4. Plug in the V2 IAT sensor extension harness.
5. Fit the air filter onto the Chimera intake tube.
6. Adjust the position to your preference and then tighten everything up.
