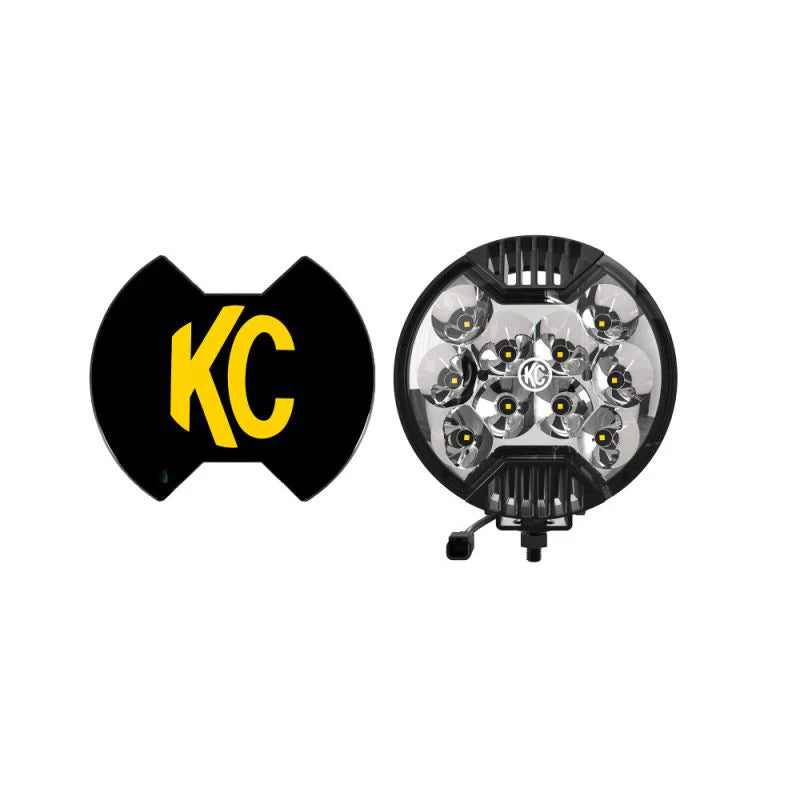

CHIMERA X KC HILITES 6" SLIMLITE HEADLIGHT CONVERSION KIT - HONDA MONKEY, TRAIL 125 CT125, DAX 125

KC's Slimlite® LED lights feature a 6" round, black aluminum housing with an ultra-slim, flat profile allowing them to fit in locations where other lights won't. Combined with a shallow profile, each Slimlite® LED light delivers immense usable light in a far reaching, off-road spot beam pattern. Each light packs a whopping 7,260 lumens, yet was designed with affordability in mind as to not break the bank.

FEATURES

Every Slimlite® LED light is powered by 10 high power Cree LEDs for unmatched power at an affordable price
- Ultra Slim Black UV treated aluminum housing with unique fin design for maximum cooling and aerodynamic efficiency
- Breathable membrane barrier
- Impact-resistant polycarbonate Lens
- Spot beam pattern

HIGH-PERFORMANCE LED OPTICS
KC's Slimlite® LED lights provide exceptional output through the use of high-performance Cree® XD-16 LEDs. Slimlite® LED lights feature an optimized beam pattern that has a spot beam output for long-distance lighting along with fill light for short to mid-range light. The 10 internal LEDs and reflectors result in incredible light output with highly targeted light distribution and beam shape that translates to more usable light than standard round lights.

RACE-PROVEN STRENGTH & DURABILITY
Constructed from a rugged aluminum housing with a durable, shatter-resistant polycarbonate lens, KC Slimlite® LED lights were made to perform at their best for years to come.

ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION Universal adjustable mounts allow user to easily mount Slimlite® LED lights to most bolt hole locations. The mounts also allow for easy vertical adjustment and horizontal aiming of light output while ensuring beam stability and consistency.



NOTES:

• The wattage draw from the Slimlite is quite high, we recommend turning off the light when the engine is OFF or when the bike is idling for a long period of time to ensure that the battery has sufficient power, this is especially important for the 50 watts draw.
• Due to the Slimlite LED light being intended for off-road use only, this conversion kit is for OFF-ROAD USE or show purposes only! You could add the SAE Driving Beam Shield SKU: KC-1010-SAE-CLR to make the light on-road compliance. However, modification to the beam shield is needed to fit this custom application. Modification to the cover is required (cuting/trimming the snap on tabs and using small velcro or double sided tape to hold the cover is needed.
