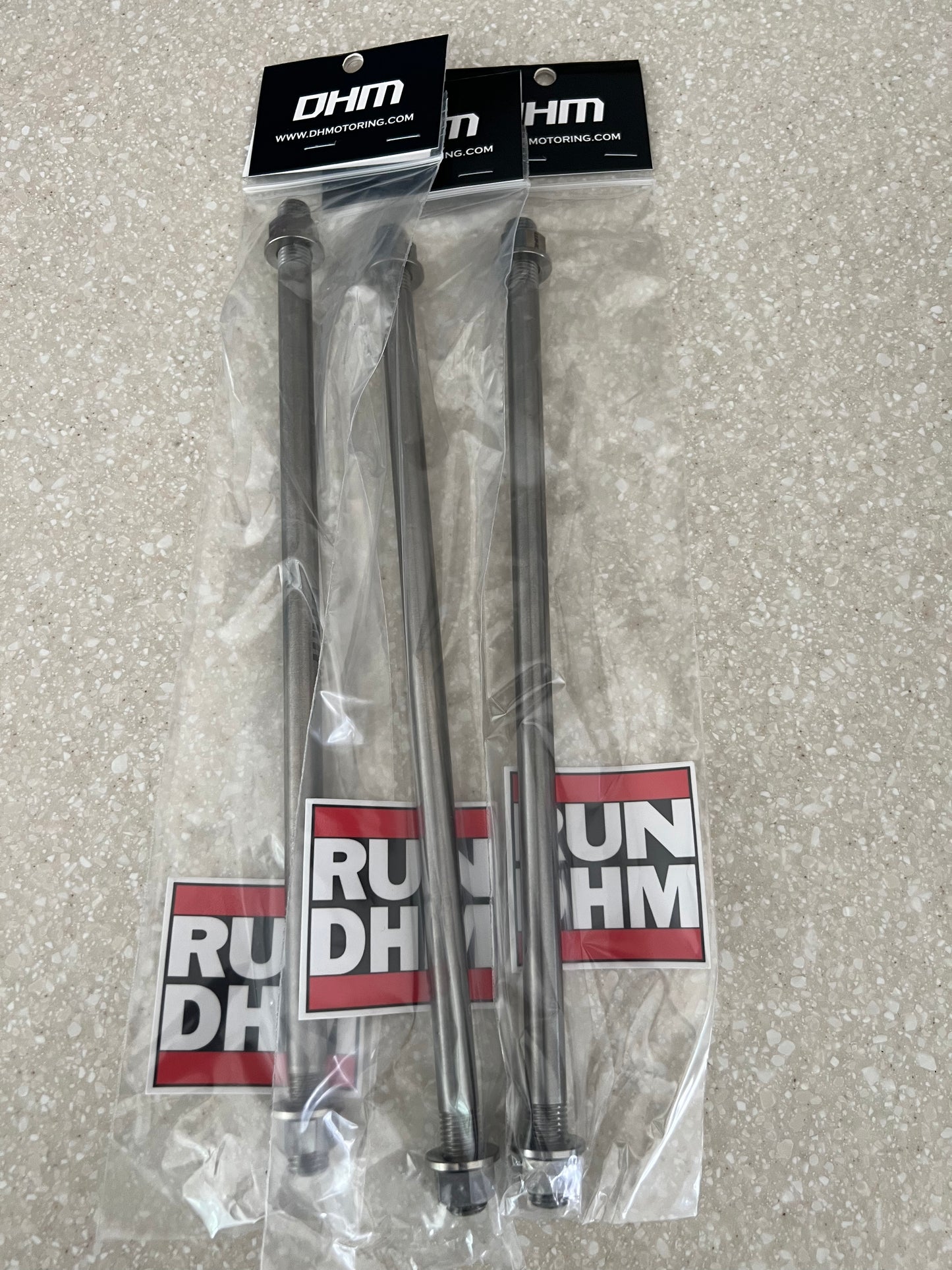

DHM Titanium Axle and Swingarm Kit for the Honda Grom & Monkey

All shafts and nuts are manufactured from Grade 5 6al-4v titanium for high strength and low weight. Titanium is noticeably lighter than steel and still extremely strong.

Swingarm bolts have threaded ends that accept a nut on each side, in comparison to the stock setup which consists of a standard bolt with a single nut. The double-nut design allows you to service one side at a time without having to remove the entire bolt. This is helpful when replacing or working on rearsets! No more awkwardly holding the bike up trying to pull the swingarm bolt to replace a broken or damaged rearset!

Each axle including both nuts weigh 4.3oz lighter than their steel counterparts.

Due to the nature of galling when using titanium hardware, we manufactured these with a 1.5 thread pitch instead of the OEM 1.25 pitch in order to keep the threads as smooth as possible. In addition, anti-seize compound should be used on the threads when installing.

Product Features:

• Grade 5 6al-4v titanium
• M12x1.5 thread
• Double nut design, to allow servicing of one side of the bike without removing the entire axle.
• Lightweight, 4.8oz per axle lighter than the stock bolt
• 16mm Hex head (compared to 19mm OEM) on the nuts to allow any socket to fit with aftermarket rearsets or axle sliders.
• Uses OEM torque spec, but requires the use of anti seize on threads
