FastAce AHX12RV Gravitee Front Fork
FastAce AHX12RV Gravitee Front Fork
SKU:AHX12RV-50
In stock
Couldn't load pickup availability

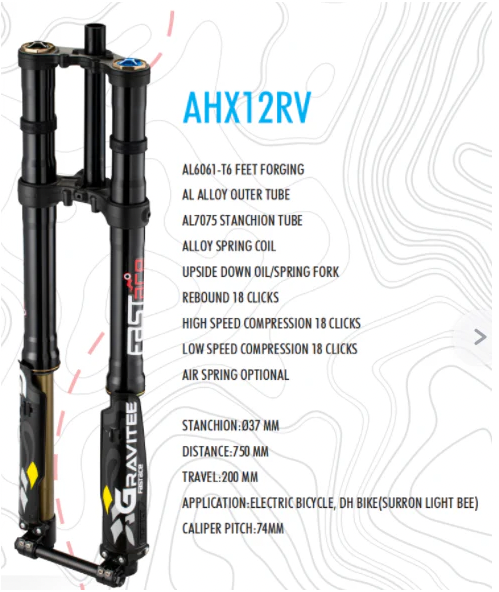

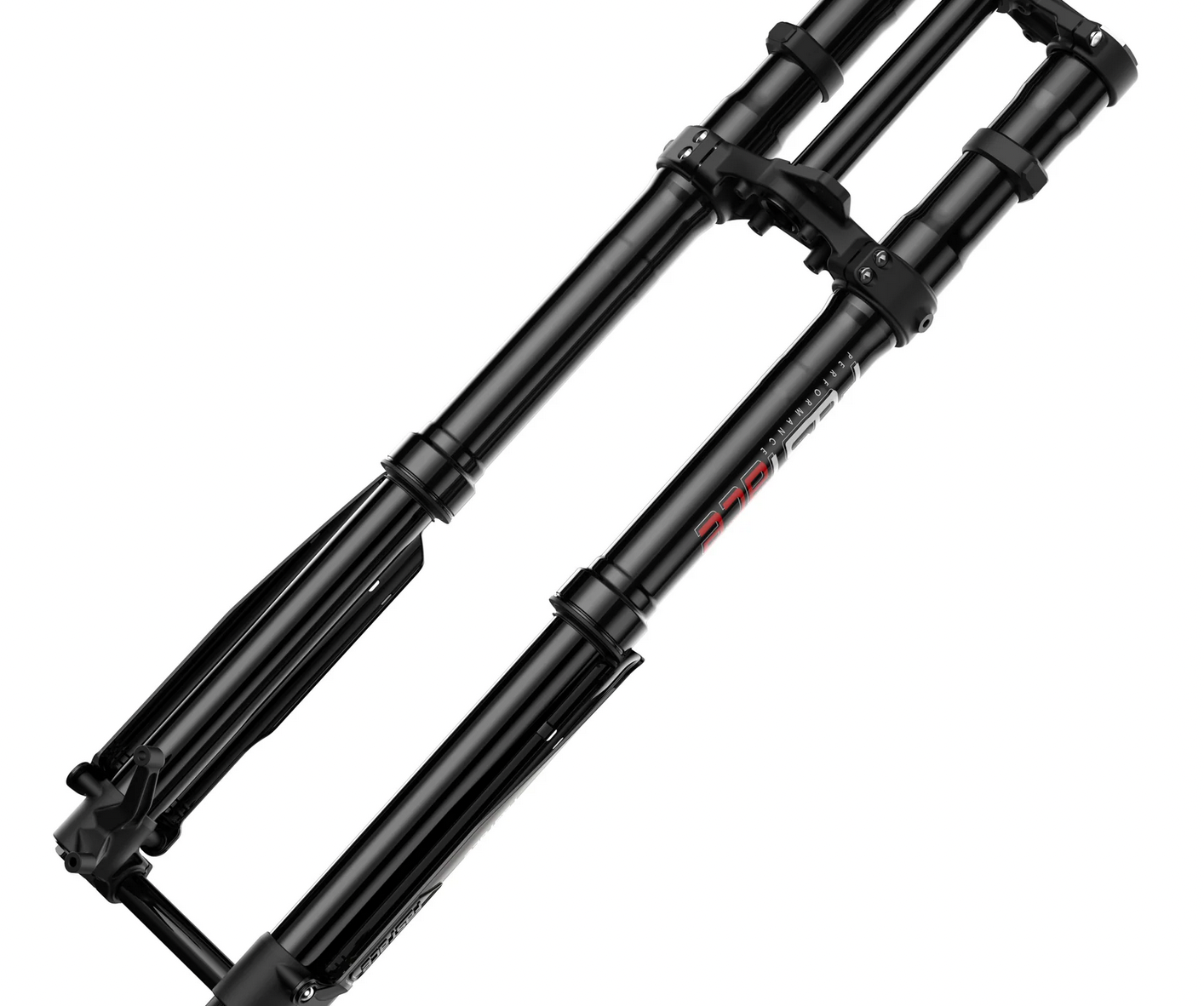

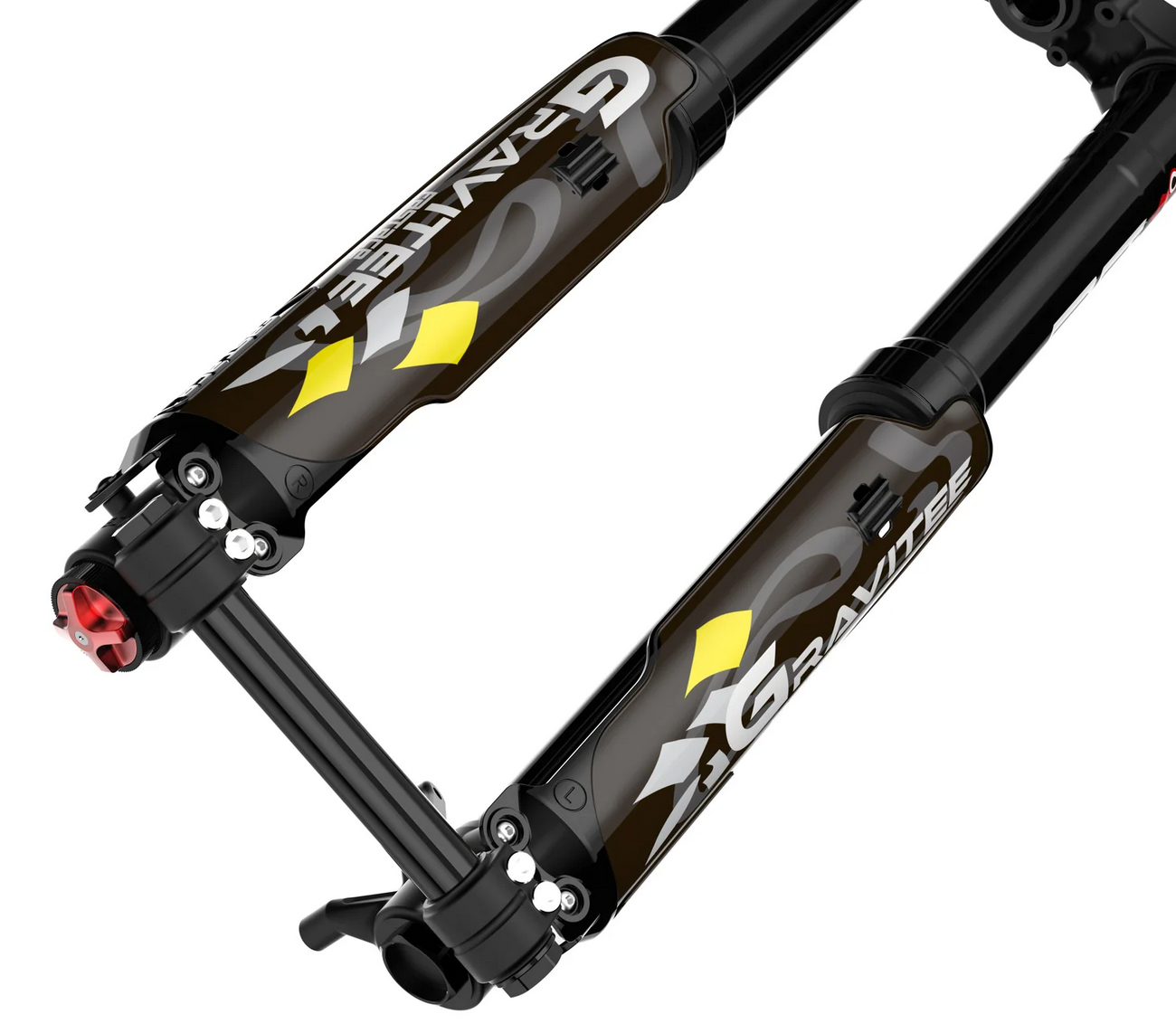

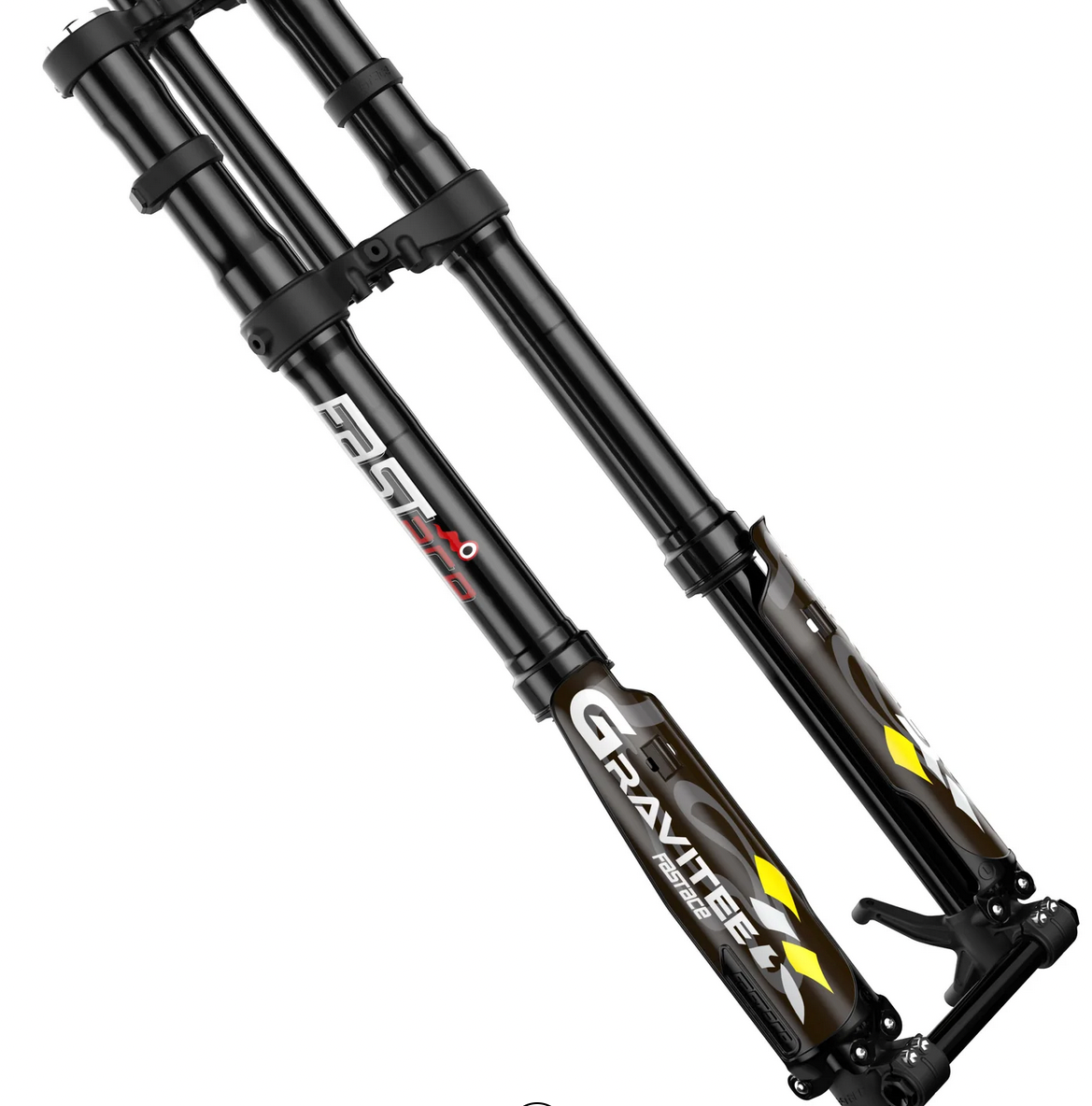

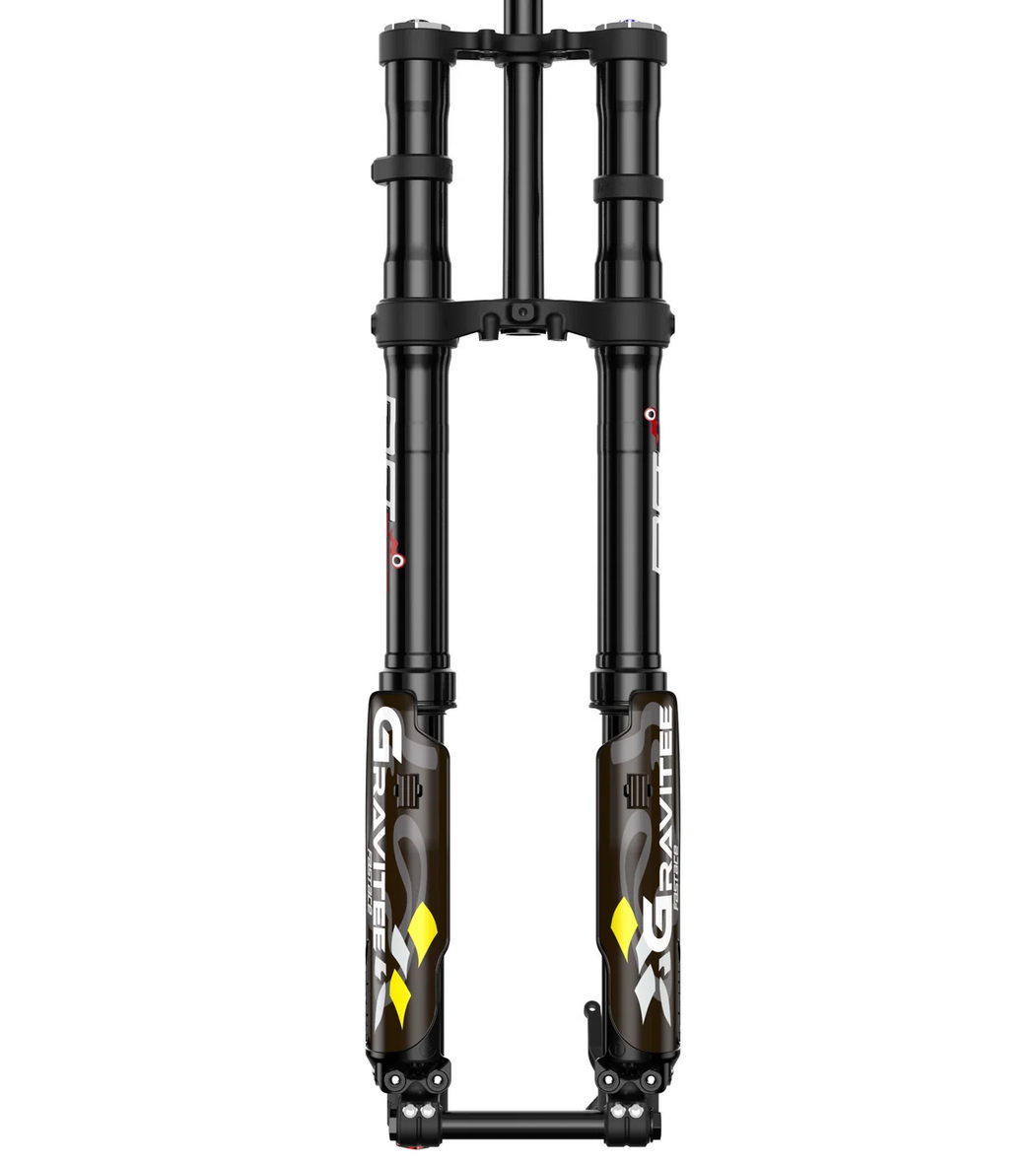

This is FastAce's newest offering for Surron Light Bee, Talaria Sting MX3/MX4/XXX, E Ride Pro SS, and all other MTB fork based eMoto bikes. Often called the "3.0", it's bigger and beefier than its predecessor, includes black lower/stanchion tubes, and now has 18 clicks of both high and low-speed compression damping adjustment. It features HD springs up to 60lb and updated dampening valving which provides a huge upgrade over previous generations and the OEM forks.
Spring Rate Recommendation
Spring Rate | Under 175 | 176-200 | 200+ |
50 lb | Ideal | Soft | Too Soft |
60 lb | Stiff | Race | Ideal |
38-60lb Progressive | Stiff Ramp Up | Plush | Excess Sag |
FEATURES:
- Legs Material: 2000 Series Aluminium
- Leg Diameter: 37mm
- Axle: 20*10*M14*P1.5*170L
- Steerer: 1-1/8" Straight
- Spring: coil spring
- Adjustments: Rebound, HS and LS Compression
- 18 steps High Speed and 18 steps Low Speed Compression Damping
- 18 steps Rebound Damping
- Crown: Forged
- Brake Post Mount: 203mm (compatible with up to 223mm rotors)
- Max Tire Width: 67mm
- Ride Height: 22.9in
- Travel: 200mm
-
For heavier riders and big air dirt jumpers
