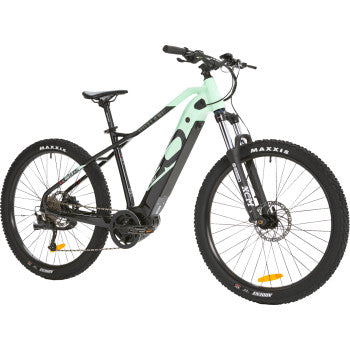

iGo Outland Sawback RS E-Bike

This #1 feature lets users instantly reconfigure parameters to Class 1, 2, or 3 regulations with a single button. The high-powered drivetrain and motor system provide an electric-assisted, traditional experience on multiple terrains. Designed for trails, its geometry and components maximize cross-country performance while ensuring enhanced safety features and serviceability. The 110 Nm/500 W mid motor is cross-country tuned and utilizes Torque/Cadence sensing and a throttle for a powerful, intuitive feeling. The 720 Wh battery supplies up to 45 miles of range and includes quick and easy charging capabilities. Eco/Tour/Sport/Turbo/Boost user settings customize the experience.
iGO Electric Bike Collection
iGO At a Glance

Frameset

• Frame — Hydroformed Alloy, 27.5" Hardtail MTB frame, internal cable routing head tube ported, removable down tube battery with security lock
• Fork — SUNTOUR SF-18 27.5” XM34-DS-Boost-LO suspension, 120 mm travel, lockout, Q-Loc Thru Axle=

• Shifters - SHIMANO ALIVIO 9-speed Rapidfire Plus
• Chainrings — 34T with Narrow Wide teeth
• Chain — KMC E9-S
• Rear Derailleur — SHIMANO ALIVIO 9-speed
• Cassette — SHIMANO ALIVIO 9-speed 11-36T

• Handlebar — 720 mm, 28 mm rise, 31.8 mm diameter
• Grips — VELO, Rubber palm rest, 132 mm
• Stem — 45 mm with 3° rise, 31.8 mm clamp diameter
• Seat Post — EXA KSP900-1 Dropper Post, 150 mm travel (445 mm)
• Saddle — SELLE ROYAL Viento
• Brake Levers — TEKTRO HDE350 with power cut off switch
• Brake Calipers — TEKTRO HDE350 Hydraulic Disc
• Rotors — 180 mm

• Bluetooth — iGO Mobile App (Android and iOS). Customizable profile and performance settings with full diagnostic monitoring and alerts
• Display Unit — USB Charging Port, Light Auto On/Off Option (Ambient Light Detector), Interface Color Coded Display Reference (for Quick Glance Safety), Main Power/PAS Control/Ride, Stats and Settings Toggle, PAS Level/Battery/Power/Clock, Speedometer/Max Speed/Avg Speed, Trip Distance, Battery Voltage/Capacity Percentage/Range/Accumulated Charging Cycles, Motor Power Output Average/Maximum, Ride Analysis Statistics, Diagnostic and Warning Information, Walk Assist
• Motor — iGO DRIVE RS 500 W mid motor, 48 V
• Torque — up to 130 Nm
• Battery — 5000mAh SAMSUNG cell, removable with security lock (48 V | 15 Ah | 720 Wh)
• Range — 45 miles*
• Pedal Assist System — Eco/Tour/Sport/Turbo/Boost color coded per PAS level
• Throttle — On-Demand, Removable
• Sensor — Internal Torque, Cadence, Speed
• Class — Class 2 Model, configurable to Class 1 or Class 3 capable where permitted**

• Water Bottle Bosses on Seat Tube, Kickstand, VP-501 Pedals, Tool Kit, Battery Charger

• Battery Weight — 7.7 lbs
• Weight Capacity — 275 lbs
• *Actual range may vary depending on Ah of battery rider weight and other riding conditions. Specifications subject to change.
• **Class Regulations: Class 1 (Pedal assist motor with maximum assisted speed 20 mph, Class 2 (Pedal assist motor and throttle with maximum assisted speed 20 mph), Class 3 (Pedal assist motor with maximum assisted speed 28 mph. Throttle will work up to 20 mph).
