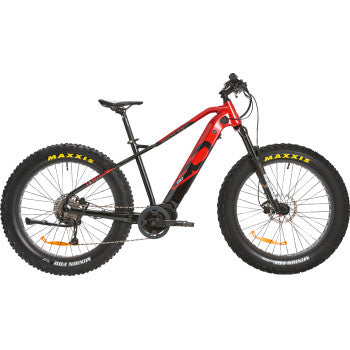

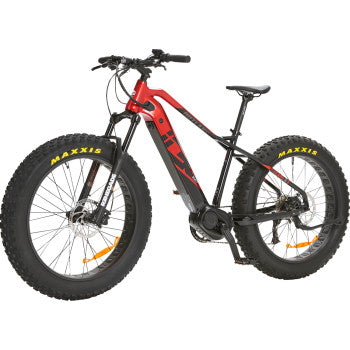

iGo Outland Torngat RS E-Bike

This highly adaptable feature allows for parameters to be adjusted at the touch of a button to comply with Class 1, 2, or 3 guidelines. The dynamic motor system provides excellent control and handling to traverse sand, snow, and mud, while preserving the traditional riding experience. A mid-motor with 110 Nm/500 W output, Torque/Cadence sensing, and throttle ensure a powerful and intuitive ride. The 720 Wh battery offers up to 37 miles* of range and 4.8” tires are prepared for everyday use. Charging is simple and uncomplicated, providing for all day range. An intuitive riding experience is facilitated with the customizable Eco/Tour/Sport/Turbo/Boost features.

• iGO Electric Bike Collection
• iGO At a Glance

Frameset

• Frame — Hydroformed Alloy, 26" Fatbike frame, internal cable routing head tube ported, removable down tube battery with security lock
• Fork — RST RENEGADE 26” suspension, 120 mm travel, lockout, Thru Axle

Drivetrain

• Shifters — SHIMANO ALIVIO 9-speed Rapidfire Plus
• Chainrings — 34T with Narrow Wide teeth
• Chain — KMC E9-S

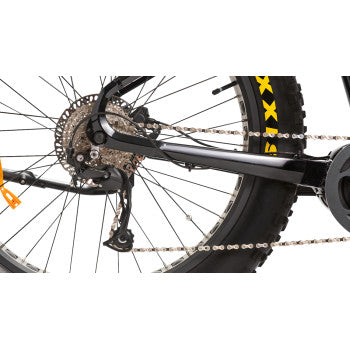

• Rear Derailleur — SHIMANO ALIVIO 9-speed
• Cassette — SHIMANO ALIVIO 9-speed 11-36T

Components

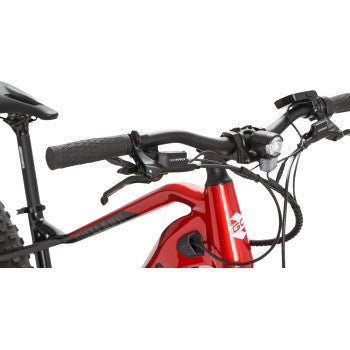

• Handlebar — 700 mm, 28 mm rise, 31.8 mm diameter
• Grips — VELO, Rubber palm rest, 132 mm
• Stem — 41 mm with 3° rise, 31.8 mm clamp diameter
• Seat Post — EXA KSP900-1 Dropper Post, 150 mm travel (445 mm)
• Saddle — SELLE ROYAL Viento
• Brake Levers — TEKTRO HDE350 with power cut off switch
• Brake Calipers — TEKTRO HDE350 Hydraulic Disc
• Rotors — 180 mm

Wheels

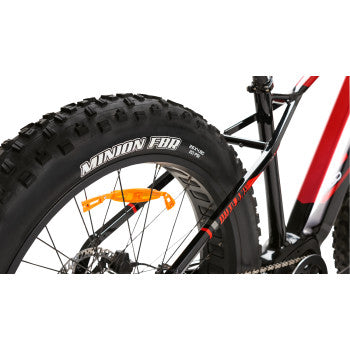

• Tires — MAXXIS Minion M346(F) M347(R) 26”x4.8”
• Rims — 26" x 95 mm Fat bike rim

Electronic Technology

• Bluetooth — iGO Mobile App (Android and iOS). Customizable profile and performance settings with full diagnostic monitoring and alerts
• Display Unit — 2” HD High Brightness IPS Color LCD Display, Ergonomically Designed Buttons, IP65 Waterproof, Password Protected Power On Option, USB Charging Port, Light Auto On/Off Option (Ambient Light Detector), Interface Color Coded Display Reference (for Quick Glance Safety), Main Power/PAS Control/Ride, Stats and Settings Toggle, PAS Level/Battery/Power/Clock, Speedometer/Max Speed/Avg Speed, Trip Distance, Battery Voltage/Capacity Percentage/Range/Accumulated Charging Cycles, Motor Power Output Average/Maximum, Ride Analysis Statistics, Diagnostic and Warning Information, Walk Assist

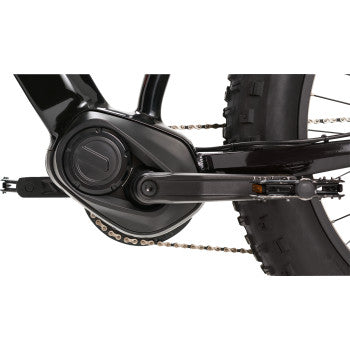

• Motor — iGO DRIVE RS 500 W mid motor, 48 V
• Torque — up to 130 Nm

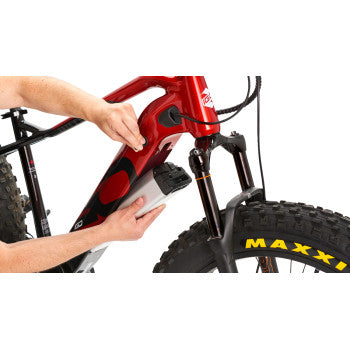

• Battery — 5000mAh SAMSUNG cell, removable with security lock (48 V | 15 Ah | 720 Wh)
• Range — 37 miles*
• Power Assist System — Eco/Tour/Sport/Turbo/Boost color coded per PAS level
• Throttle — On-Demand, Removable
• Sensor — Internal Torque, Cadence, Speed
• Class — Class 2 Model, configurable to Class 1 or Class 3 capable where permitted**

Accessories Included

• Front LED light XC-259A (powered by main battery), Water Bottle Bosses on Seat Tube, Kickstand, VP-501 Alloy MTB Pedals - Black, Bell, Tool Kit, Battery Charger

Notes

• Battery Weight — 7.7 lb
• Weight Capacity — 275 lb
• *Actual range may vary depending on Ah of battery rider weight and other riding conditions. Specifications subject to change.
• **Class Regulations: Class 1 (Pedal assist motor with maximum assisted speed 20 mph, Class 2 (Pedal assist motor and throttle with maximum assisted speed 20 mph), Class 3 (Pedal assist motor with maximum assisted speed 28 mph. Throttle will work up to 20 mph).
