MXS Zuma vertical 70cc 16/19hp bore kit

70cc Cylinder Kit Zuma vertical kit 11/19Hp!

This kit uses a 10mm pin!

The Nikasil-plated aluminium cylinder has 5 transfer ports and an oval exhaust port. The kit comes with a HQ single-ring piston (10mm pin) and a high-compression cylinder head (port timings: 189.4°/123.6°/125.8°).

To unlock the full potential of this kit, we recommend running it with a 21mm (at least 17.5mm) carburetor and a sports exhaust (such as Yasuni R, Doppler…); you can even run it with your original exhaust.

With the right set-up and adjustments, this sports kit can reach record-breaking 16/19hp!

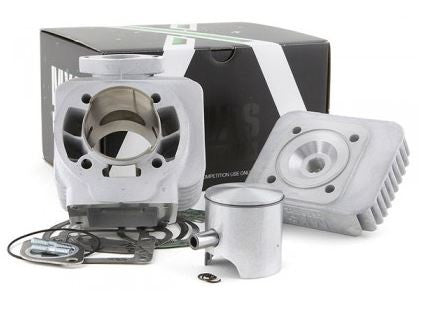

The kit comes with complete piston (pin, circlips and ring included) and the proper gaskets for mounting. To make sure to get maximum power and reliability out of this cylinder kit, you should definitely adjust "squish clearance" when mounting it (cylinder spacers are included).

For vertical Minarelli engines
Diameter: 47.6mm - Stroke: 39mm
Note: piston pin = 10mm.

http://www.scooterswapshop.com/products/mxs-piston-ring-zuma

http://www.scooterswapshop.com/products/mxs-gasket-kit

choose from sport or racing
