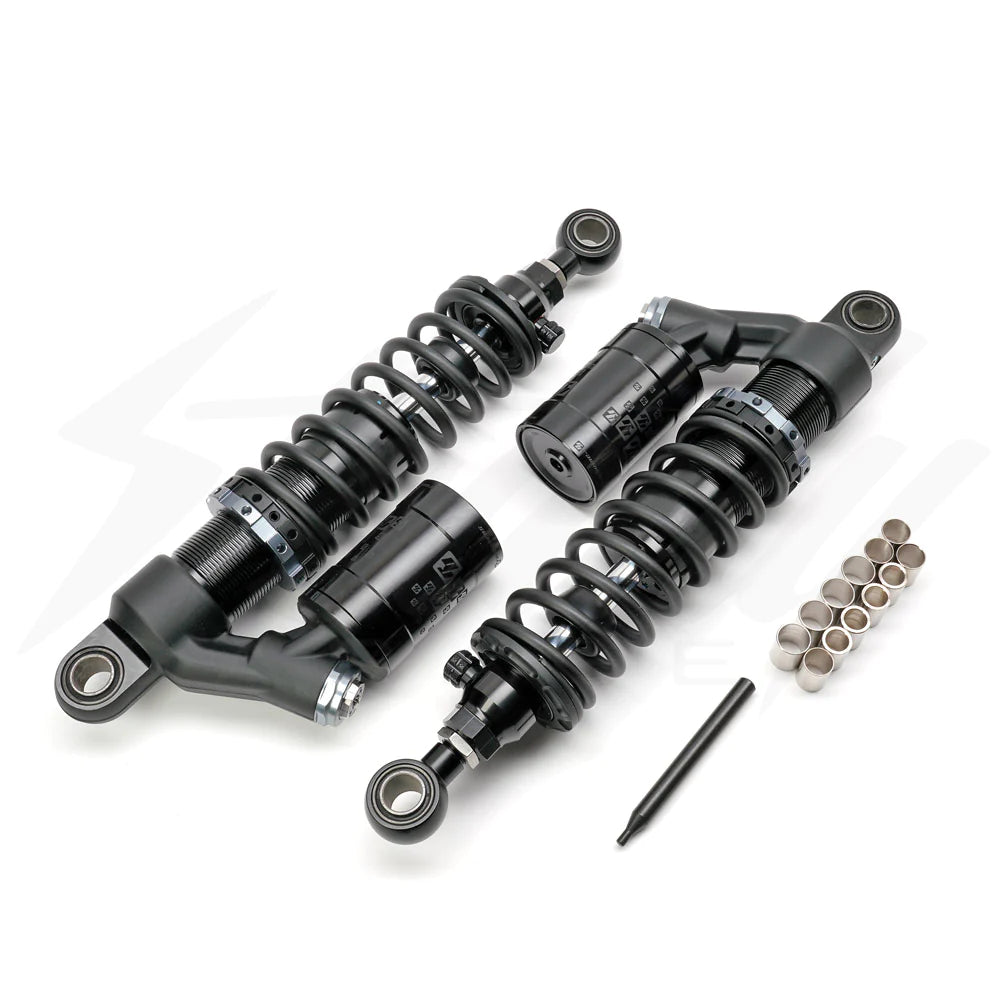

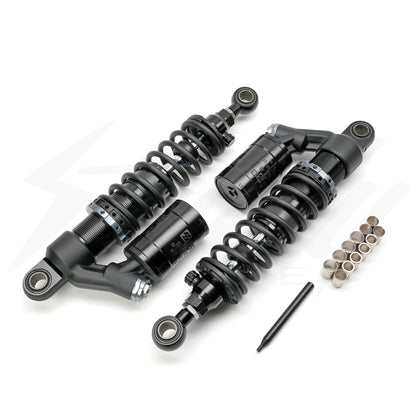

RacingBros Shicane Twin HLR Low Down Rear Shock - Honda Monkey 125

RacingBros Shicane HLR Low Down Shock for Honda Monkey 125! These shocks are 280mm length, which is ~50mm (~2inches) shorter than the standard Shicane HLR shocks! This would make it a closer size to the original Monkey bike! Monkey bikes should be small and low, pair this up with RacingBros Front Fork Lowering Kit to get sitting properly!

The RacingBros Shicane HLR shock is rebound, dampening, and spring pre-load adjustable! Spherical bearings are used on the mounting ends instead of bushings to give riders precise feedback from the rear shock!

• Photos are for reference only!

Spring rate available are:

• 15.8N/mm spring: 195lbs and under rider
• 19.3N/mm spring: 190lbs- above

Sold in Pairs.

RacingBros Shicane HLR Honda Monkey 125 Low Down shock will lower the rear of the Honda Monkey approximately ~50mm (~2inches)! The shock would allows you to adjust the spring pre-load to increase the stiffness of the rear suspension, and you can adjust compression or rebound on the fly. Spherical bearings are used on mounting ends instead of typical bushings to give the rider precise suspension feedback! Pair these shocks up with RacingBros Front Fork Lowering Kit slam or lower the Honda Monkey 125!

Spring rate available are:

• 15.8N/mm spring: 195lbs and under rider
• 19.3N/mm spring: 190lbs- above

Features

• Low Down version 280mm/+10mm length

• Super High Strength JIS G3560 Cr-Si steel spring

• 6061-T6 Cold Forged Damper Body

• 36mm 7075-T6 Full CNC Piston

• 14mm Super-Chrome Shaft

• ROD END AND SPHERICAL BEARINGS

• Spring Preload

• Wide-range Low-Speed Rebound adjustment (24 clicks)

• Co-Axial Hi/Lo Speed Compression Damping Adjustment (HLR)
  HSC (High-Speed Compression): 24 clicks
  LSC (Low-Speed Compression): 24 clicks

• 10mm Ride height adjustable
