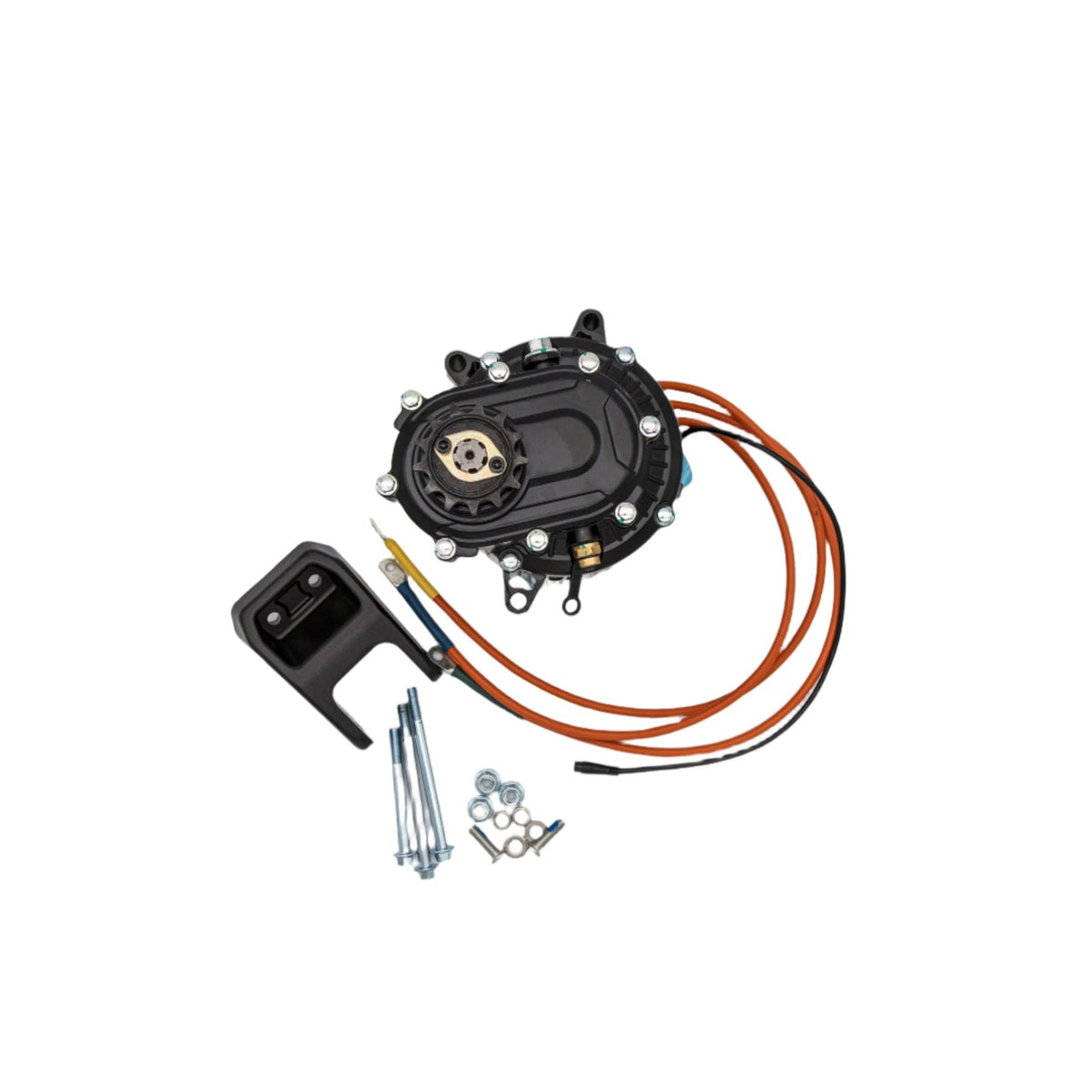

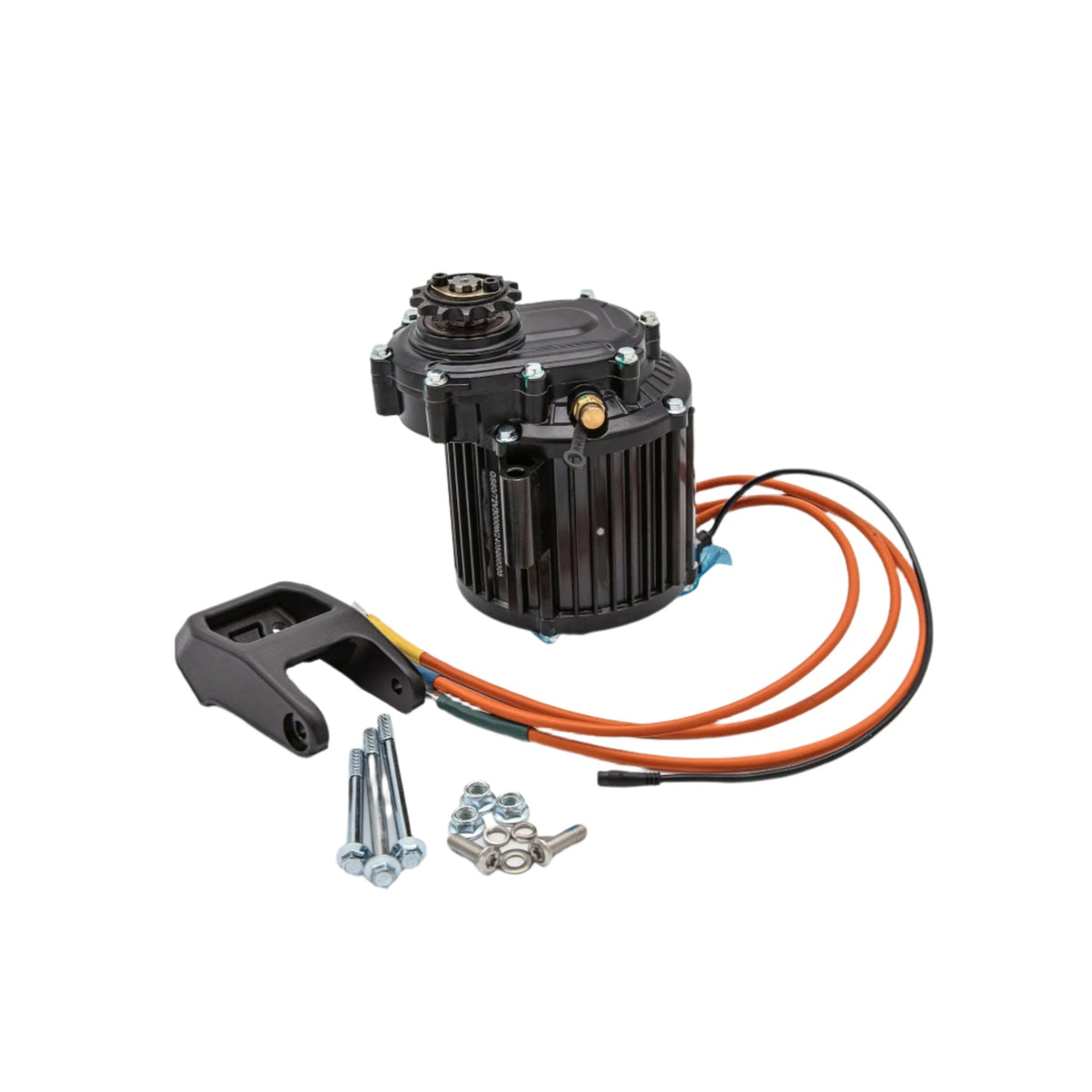

Rawrr Mantis X Motor Assembly (First Version)

Motor assembly for the Rawrr Mantis X (first version), built around a 120-50 high-speed permanent magnet brushless DC motor with gearbox, running on 60V or 72V systems with 3KW-6.5KW of power.

Specifications

• Motor: 120-50 with gearbox
• Voltage: 60V/72V
• Power: 3KW-6.5KW
• Type: high-speed permanent magnet brushless DC motor (magnetic braiding)

What's Included

• Small sprocket, 420/13Z, with mute rubber pad (comes with the motor)
• Small sprocket locking piece (comes with the motor)
• Small sprocket limit plate (comes with the motor)
• Hexagon socket head bolts, M5*8, Grade 8.8, black zinc plated (supplied with the motor)
• Motor bracket, anodized black, model DE02-M
• Hexagon socket chamfered flat head bolts, M8*25, stainless steel
• Spring washer, φ8, stainless steel
• Flat washer, φ8*φ16*1.5, stainless steel
• Hexagonal flange bolts, M8*80, 10.9 grade, blue-white zinc
• Hexagonal flange bolts, M8*105, 10.9 grade, blue-white zinc
• Hexagonal flange face metal self-locking nuts, M8, blue-white zinc

Compatibility

Fits 7UVRXLAB9SL002508 and older bikes (Mantis X). Please contact us to confirm the compatibility of the parts.

Product Details

• SKU: 02-02-13-ZJ01
• Weight: 35 lb

Note: Photos are for reference only. Actual product may differ in appearance.
