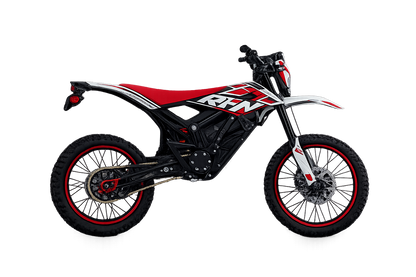

RFN Ares Rally Electric Dirt Bike | 12.5 kW | 2,590 Wh

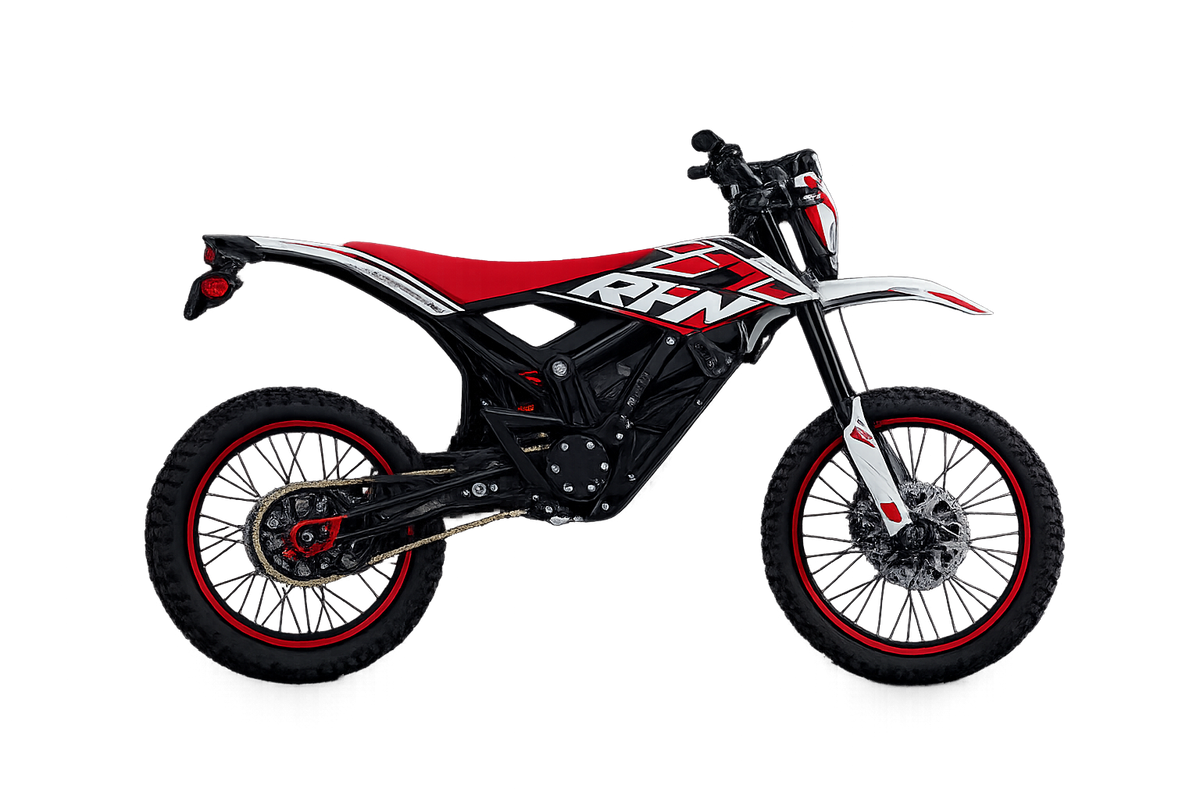

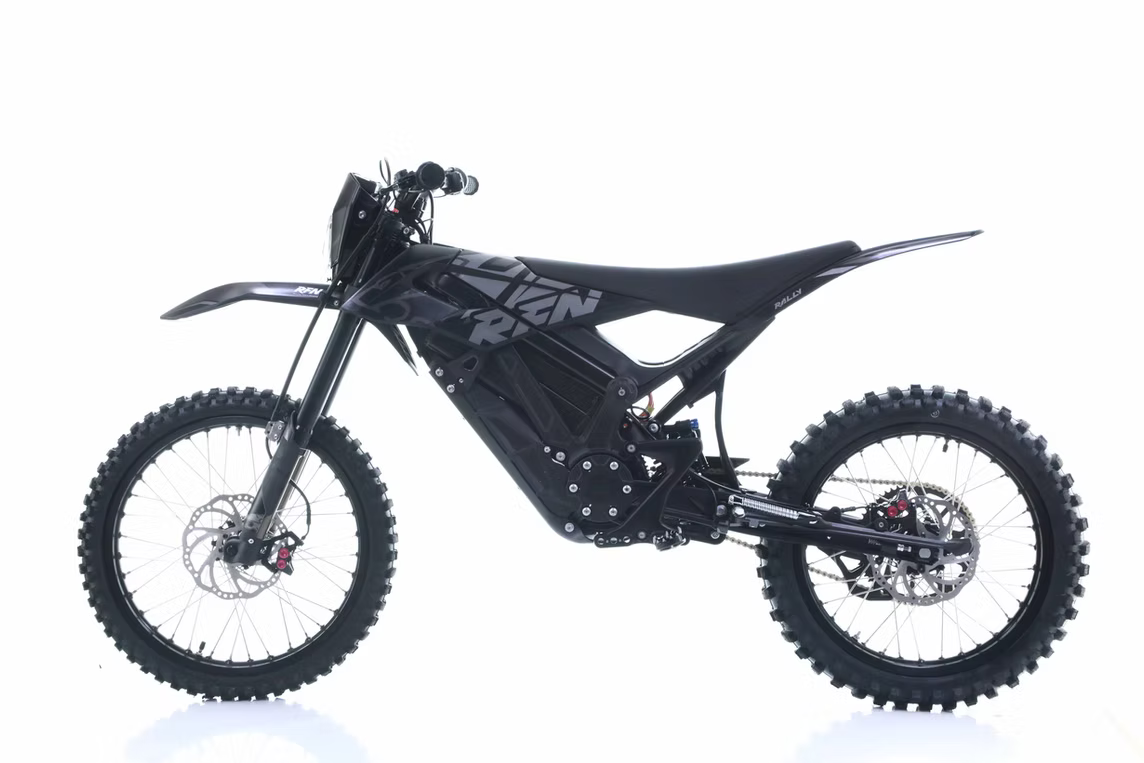

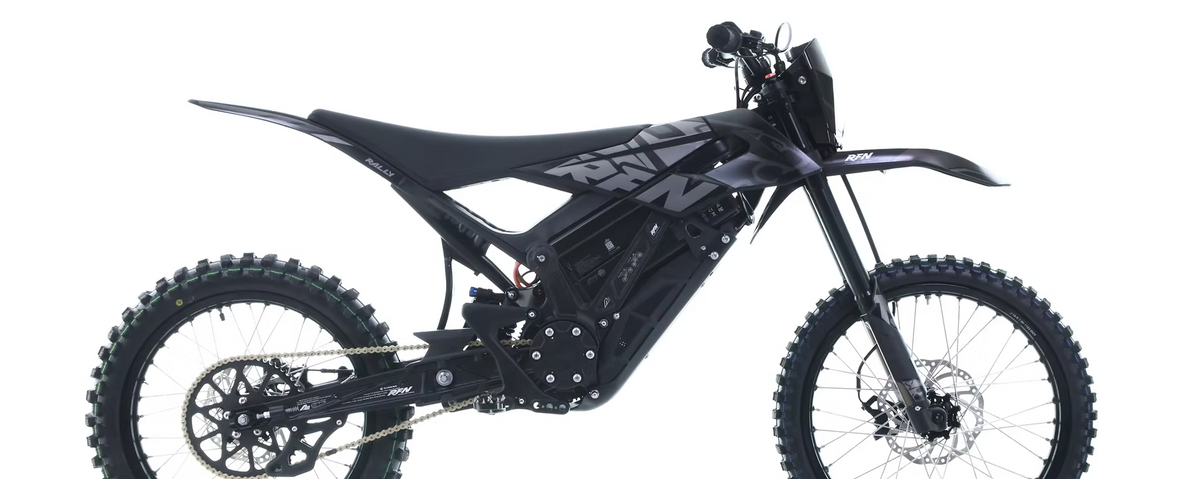

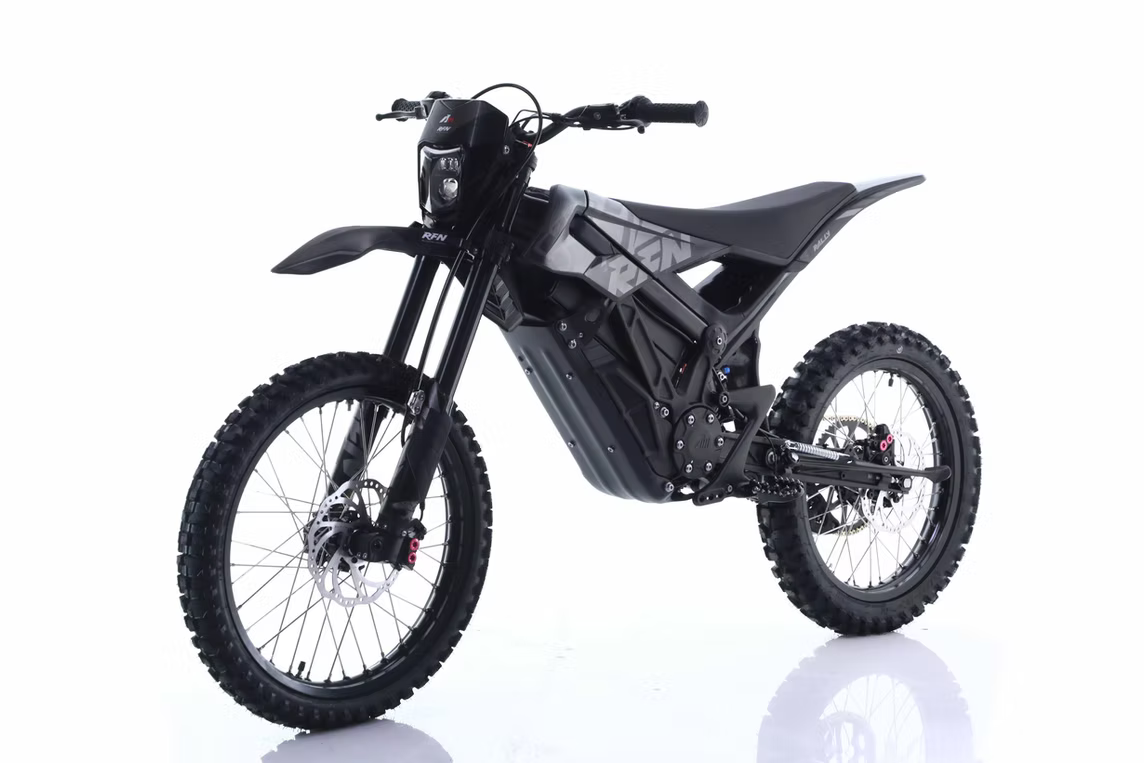

RFN Ares Rally Electric Dirt Bike

Take on technical trails and open off-road terrain with the RFN Ares Rally, a high-performance electric dirt bike built around a removable 2,590 Wh battery, 12.5 kW peak power, and long-travel suspension. With a 50 mph top speed and up to 90 miles of stated city range, the Ares Rally brings serious electric power to every ride.

Performance Highlights

• 12.5 kW peak power: 5.0 kW nominal motor power with up to 12.5 kW peak output.
• 50 mph top speed: Performance tuned for confident off-road riding.
• Up to 90-mile city range: Stated range for efficient urban riding conditions.
• 364 N·m wheel torque: Strong drive at the wheel for climbs, loose surfaces, and technical terrain.
• 185 lb curb weight: Lightweight electric motorcycle construction for a responsive ride.
• 200 mm front suspension travel: Long-travel control for rough ground and hard landings.

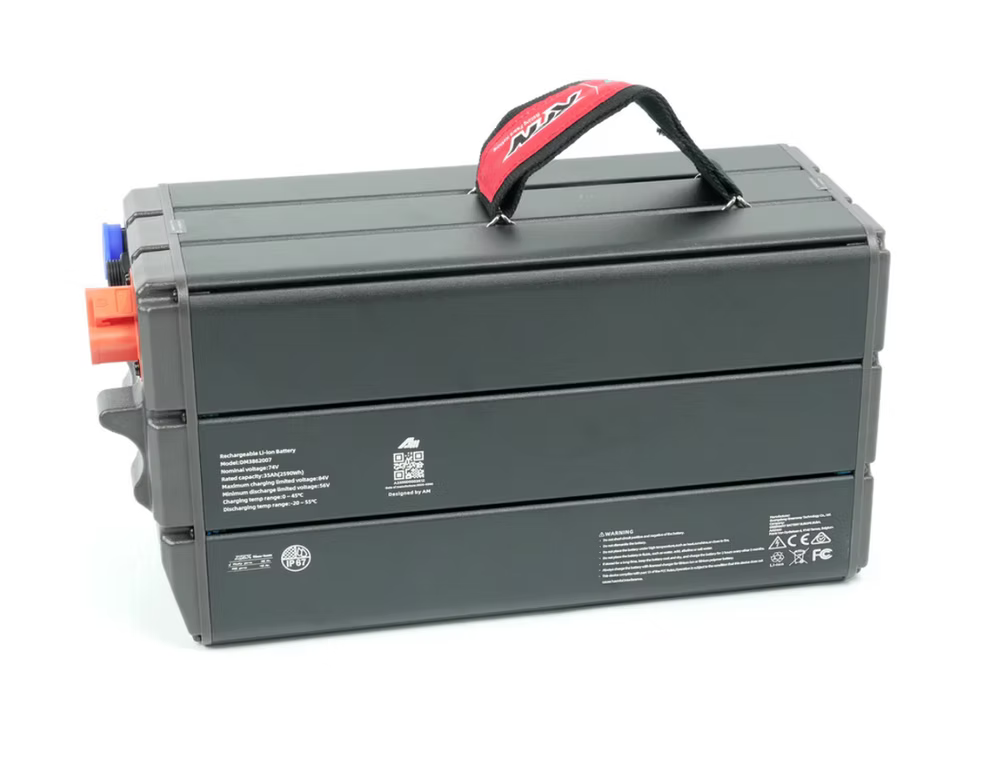

Battery & Charging

• Capacity: 43 Ah / 2,590 Wh
• Nominal voltage: 72V
• Cell type: 18650 lithium cells
• Removable design: Charge the battery on the bike or separately.
• Charge time: 0–80% in 1–2 hours, or 0–100% in 2–3 hours.
• Charger: Variable-voltage external charger for 100V–240V outlets.
• Charging input: Quick charging at 5A @ 220V AC; charging power rated at 840W @ 84V 10A DC.

Motor & Ride Modes

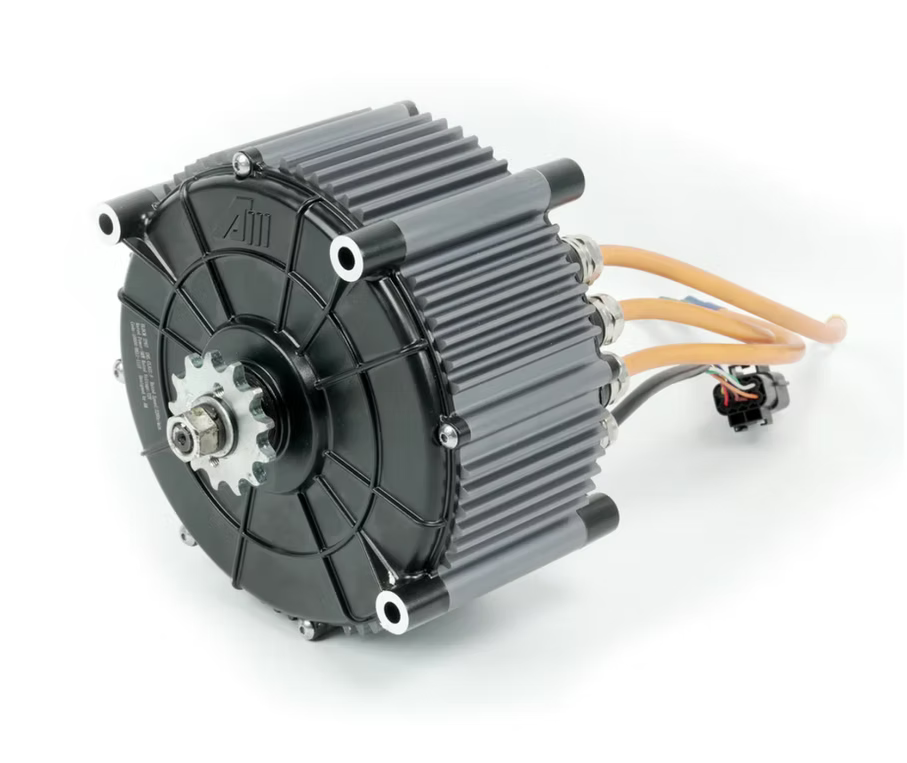

• Motor: Internal-rotor permanent-magnet synchronous motor with direct-drive chain transmission.
• Motor torque: 69 N·m at the motor axle.

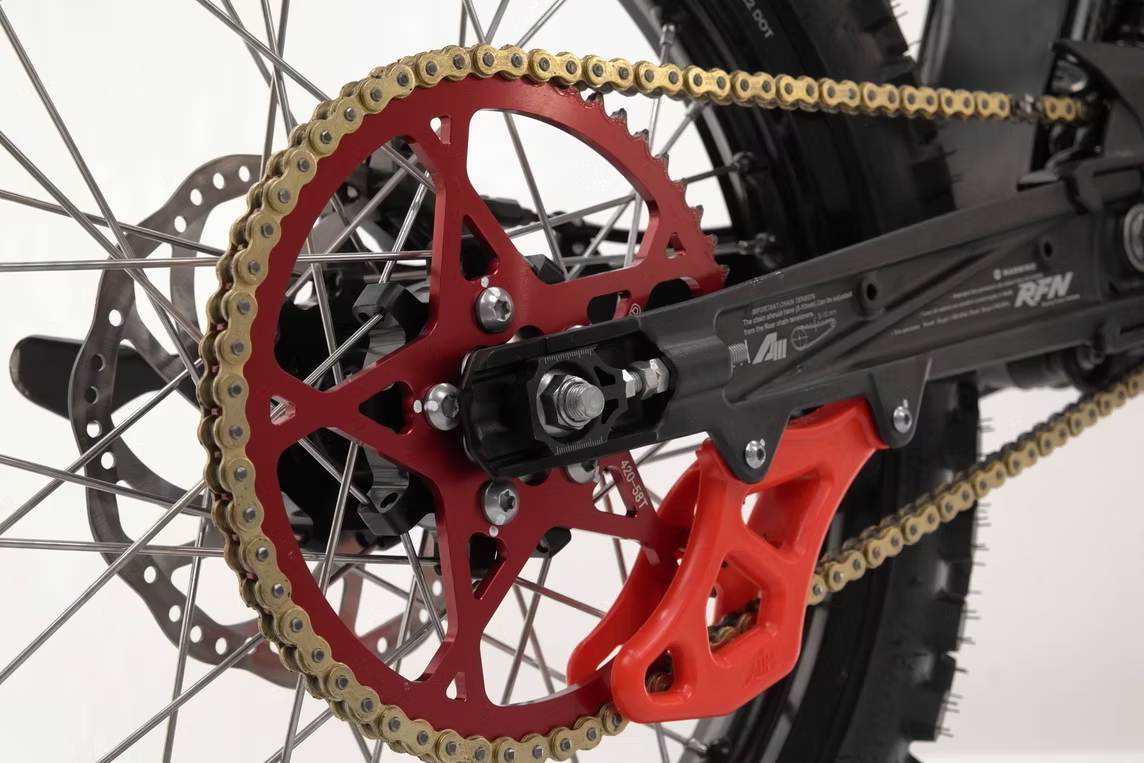

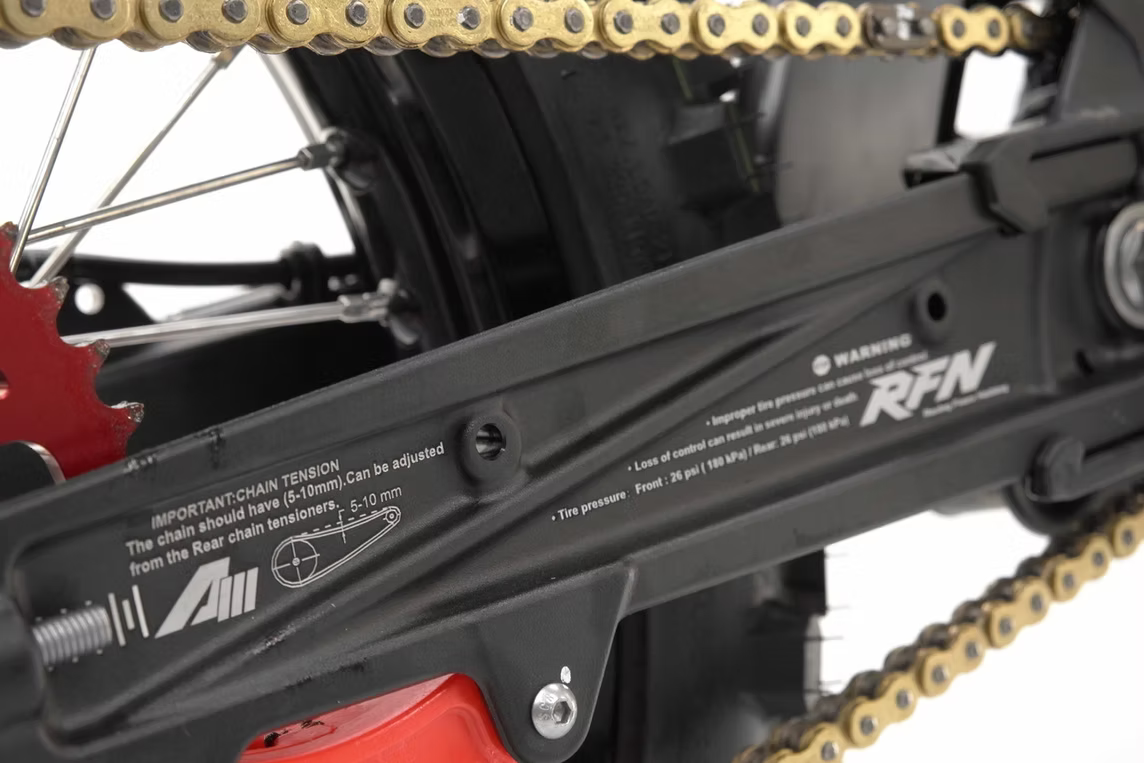

• Drive: Right-side 420 chain with 11-tooth front and 58-tooth rear sprockets.

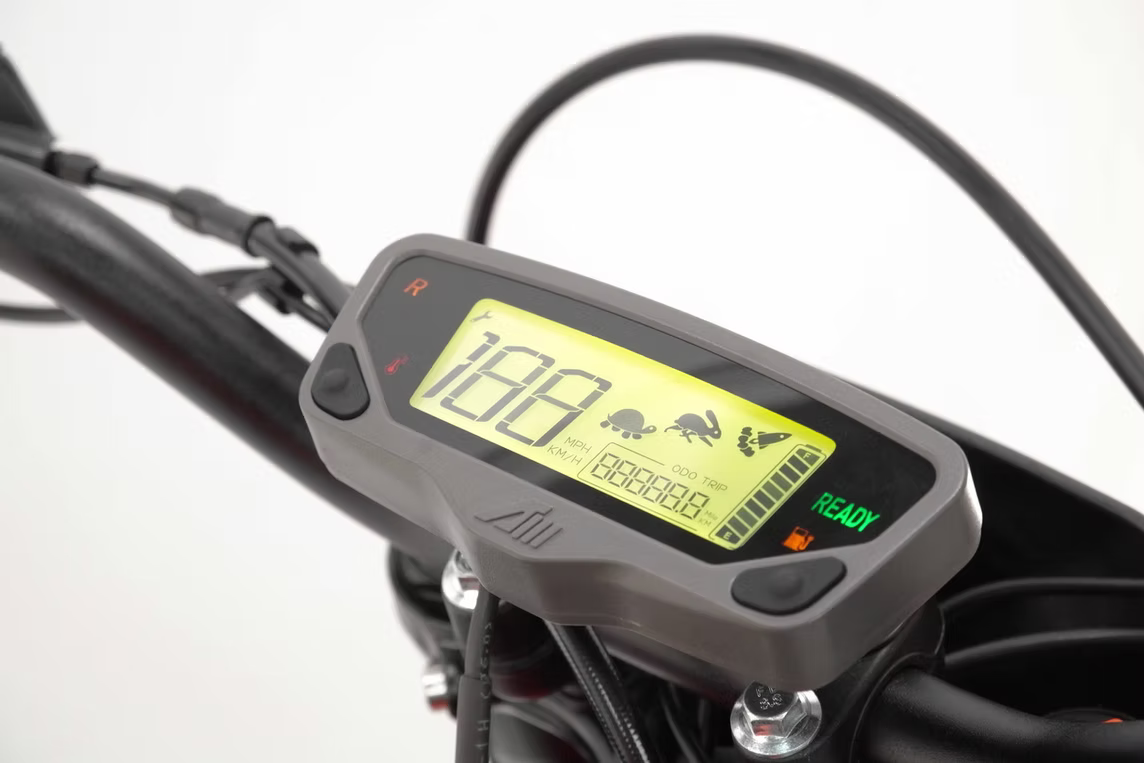

• Turtle Mode: Listed range of 96 km at 45 km/h.
• Rabbit Mode: Listed range of 50 km at 78 km/h.
• Rocket Mode: Catapult-start mode with peak current up to 150A and no time limit.
• Reverse Mode: Limited to 9 km/h for controlled maneuvering.

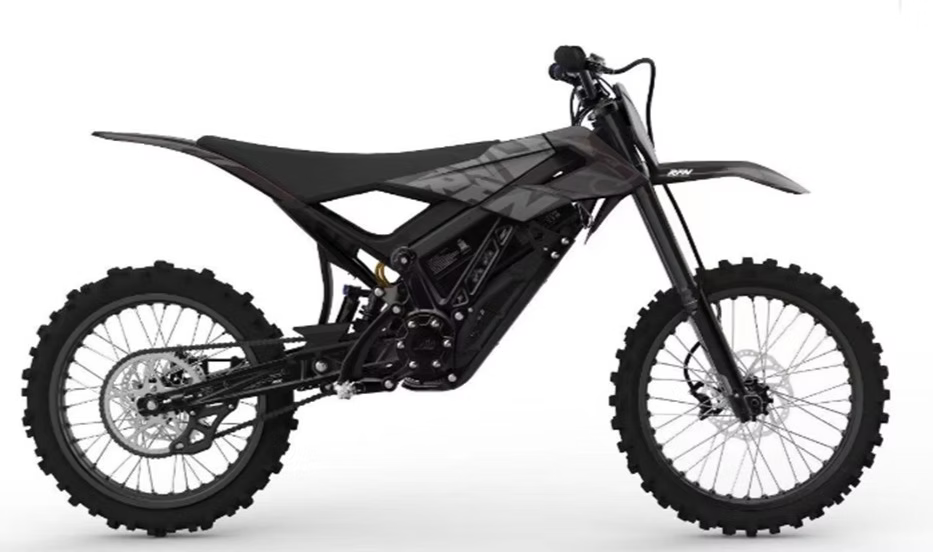

Suspension, Frame & Geometry

• Front suspension: 200 mm travel upside-down air forks with 45–48 mm stanchion tubes and a double-shoulder adjustable front damper.
• Rear suspension: 240 mm shock with adjustable compression damping, rebound damping, and spring preload.
• Rear travel settings: 68 mm shock travel with 180 mm wheel travel, or 59 mm shock travel with 150 mm wheel travel.
• Frame: 6082 aluminum extruded, forged, and iron frame construction.
• Rear fork: 6082 forged aluminum alloy with enhanced modularity.
• Fork angle: 24°.
• Ground clearance: 320 mm (12.60 in).
• Seat height: 860 mm (33.86 in).
• Wheelbase: 1,330 mm (52.36 in).
• Offset: 15 mm in the triple clamps and 45–48 mm in the forks.

Wheels, Tires & Finish

• Hubs: Forged and CNC-machined RFN aluminum hubs with 20 mm axles.
• Rims: Reinforced 19-inch front and 18-inch rear motorcycle-standard rims with straight-pull spokes, made from 7116 aluminum.
• Tires: Kenda K783 off-road tires, 70/100-19 front and 90/100 rear.
• Seat: Vinyl leather seat cushion.
• Color options: Red/Black and White/Black.

RFN Ares Rally Specifications

• Battery: 72V, 43 Ah, 2,590 Wh removable lithium battery
• Peak power: 12.5 kW
• Nominal power: 5.0 kW
• Top speed: 50 mph
• Stated city range: Up to 90 miles
• Curb weight: 185 lb

Built for electric off-road performance: The RFN Ares Rally pairs a removable battery and selectable ride modes with a rigid aluminum chassis, long-travel suspension, and motorcycle-standard wheels for riders who want a sharper, quieter way to explore beyond the pavement.
