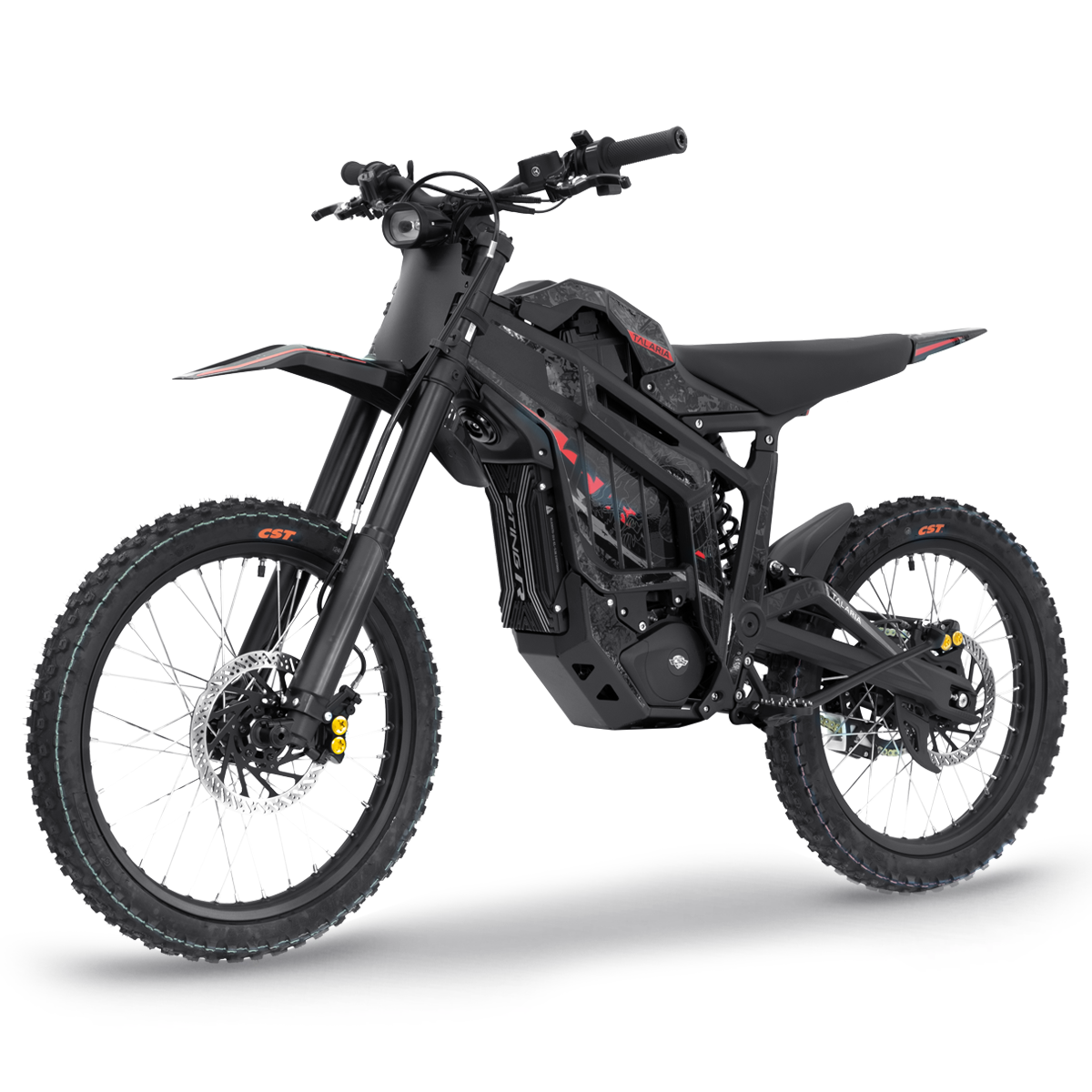

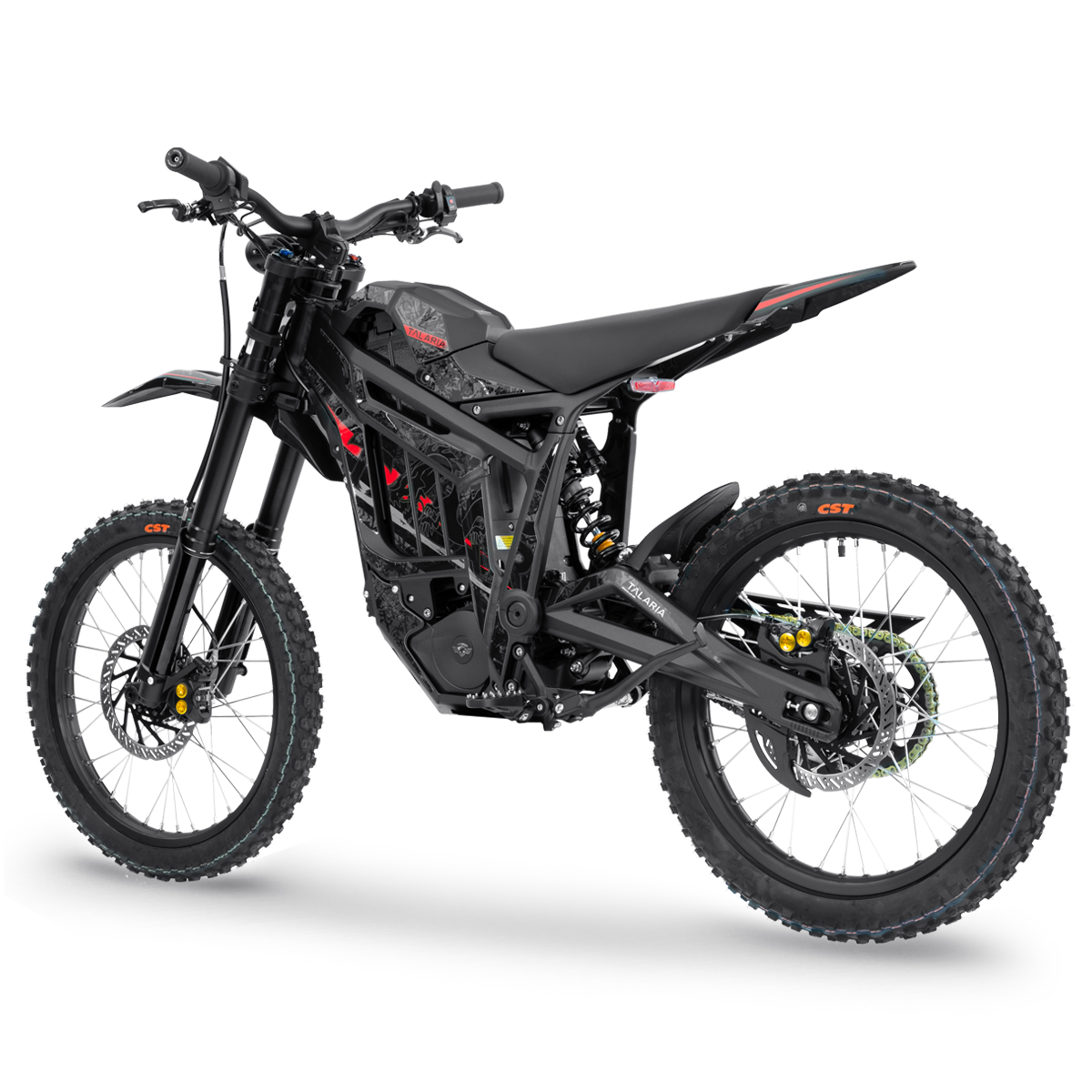

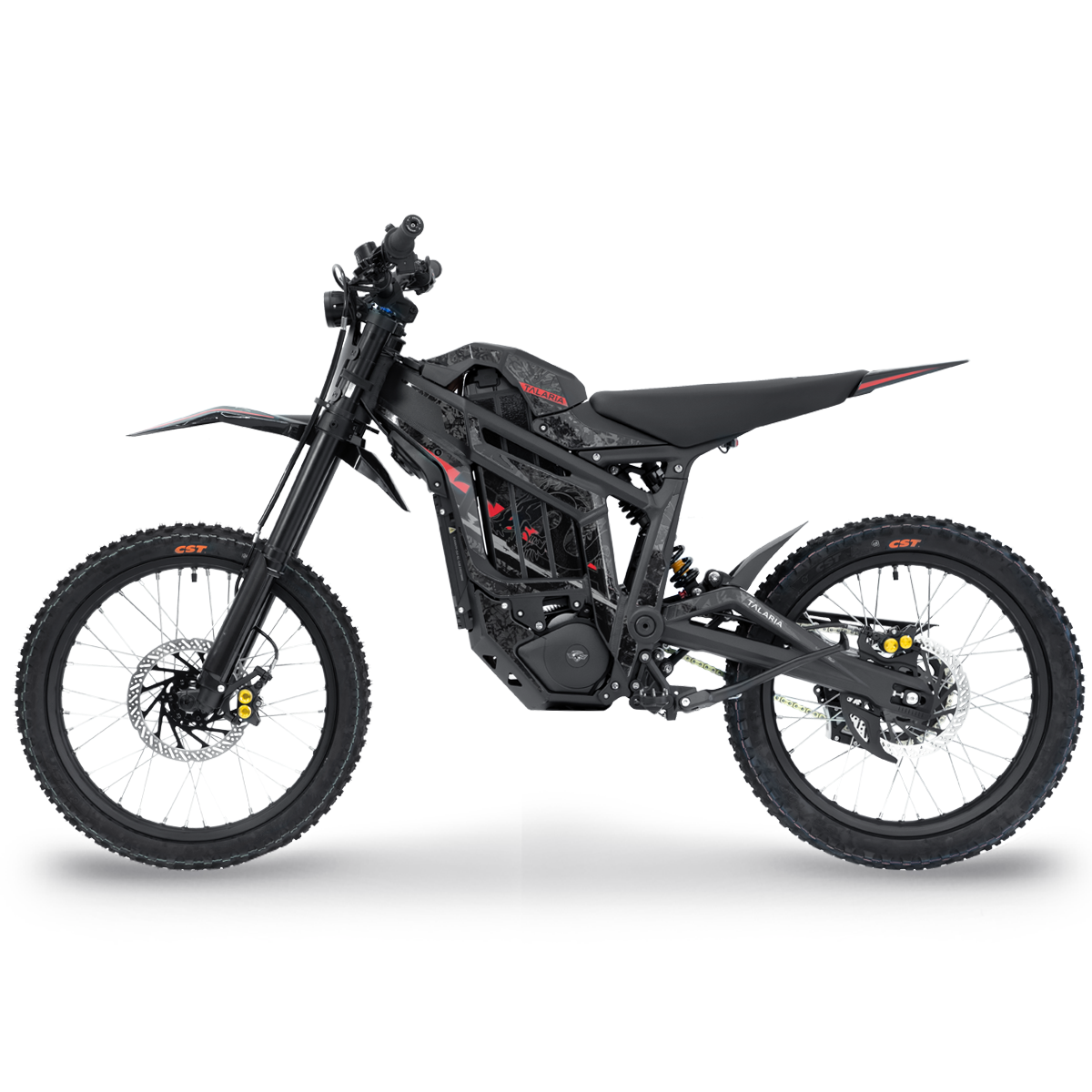

Talaria MX5

• This bike is sold as an Off Road vehicle
• Optional MX5 Red Sticker Kit included (Customer Install)
• Warranty

• Assembly and Setup Video
• Manual
• Check out the Facebook owners group for Upgrade information and shipping updates

Also check out the Talaria Sting MX3 and the MX4 at a substantial savings if you don't need the extra power of the MX5.

IMPORTANT NOTE: This bike is sold for off-road use only.  It is speed and power limited to comply with federal, state and local  laws. Please do not bypass this restriction or modify it to go faster.. The buyer takes full responsibility of the proper use of this product which may or may not conform to all applicable laws in the region  it is ridden.

This MX5 is factory  limited to 20-25mph. If you remove the limiter, you do it at your own risk (we do not recommend it) and the bike will go over 50mph.

---

( CLICK HERE FOR CLOSE-UP )

We are offering this bike at a low introductory price of $4700.  At this price these bikes will not be in stock long!

You guys asked for it and you got it. A 72v version of the Talaria Sting... offering 45 percent more power over the MX4 and all the excitement, power and speed of many of the super expensive after market custom build emotos that have been swarming the scene. Talaria has been in the power sport business for over 10 years and quickly grew to become the performance leader in the sport eBike segment.  With cutting edge performance, leading reliability, and continuous product improvements, this latest release is the culmination of all of these elements combined into one.  Performance means nothing without reliability, and Talaria has grown a reputation in the industry for being the leader in reliable and safe performance.

The MX5 has been revised from the ground up, incorporating many upgrades and improvements based on customer feedback and distributor recommendations.  Significantly improved performance, while maintaining smooth predictable power delivery.  Whether new to the sport eBike scene, or a seasoned veteran, the MX5 guarantees performance and reliability like nobody has delivered until now.

Improvements in the Talaria MX5 vs. MX4:

- Variable Regen with thumb-control, for increased efficiency and braking redundancy
- Reinforced rear swing arm to accommodate the increased power output
- CNC MX-style anodized black footpegs
- Improved IPM motor with larger stator/rotor and revised air cooling, 95% efficiency
- Redesigned gearbox to handle greater power output
- 13.5kw controller (unrestricted) that has been tuned for smooth, predictable power
- 72v 40ah battery designed for big power with 50s Samsung cells
- Larger MX-style brake calipers with oversized pads (almost twice size of MX4) and 3mm thick rotors
- DOT 3/4 fluid-filled brake system to handle increased heat load
- Heavy duty 428 chain is twice as strong as the 420 chain used on the MX4… will not stretch or break
- Color TFT display with speed, battery capacity, regen level, and more
- Headlight/Taillight on and off switch
- 3 selectable power levels instead of 2
- Revised front and rear suspension tuned specifically for the MX5… adjustability for compression, rebound, and preload
- Thicker seat with improved comfort and paddin
- Thick CNC MX wheels with straight pull spoke lacing for ultimate durability
- 48T rear sprocket
- 15-amp Battery Charger



---

 Improved braking system

Due to the increased performance of the MX5, Talaria revisited the brake system design and made various improvements to ensure reliable performance and safety.  Both front and rear calipers and rotors have been oversized, now 200x3.0 MM rotors.  This gives the MX5 roughly 20% more stopping power and heat dissipation.  The calipers are gigantic which offer incredible stopping power even at high speeds. The brake pads have been upgraded to almost twice the size of the MX4!  They are made from an advanced compound made by Talaria specifically for this bike. This makes an incredible difference in stopping power, smooth brake operation, brake longevity, and braking reliability.

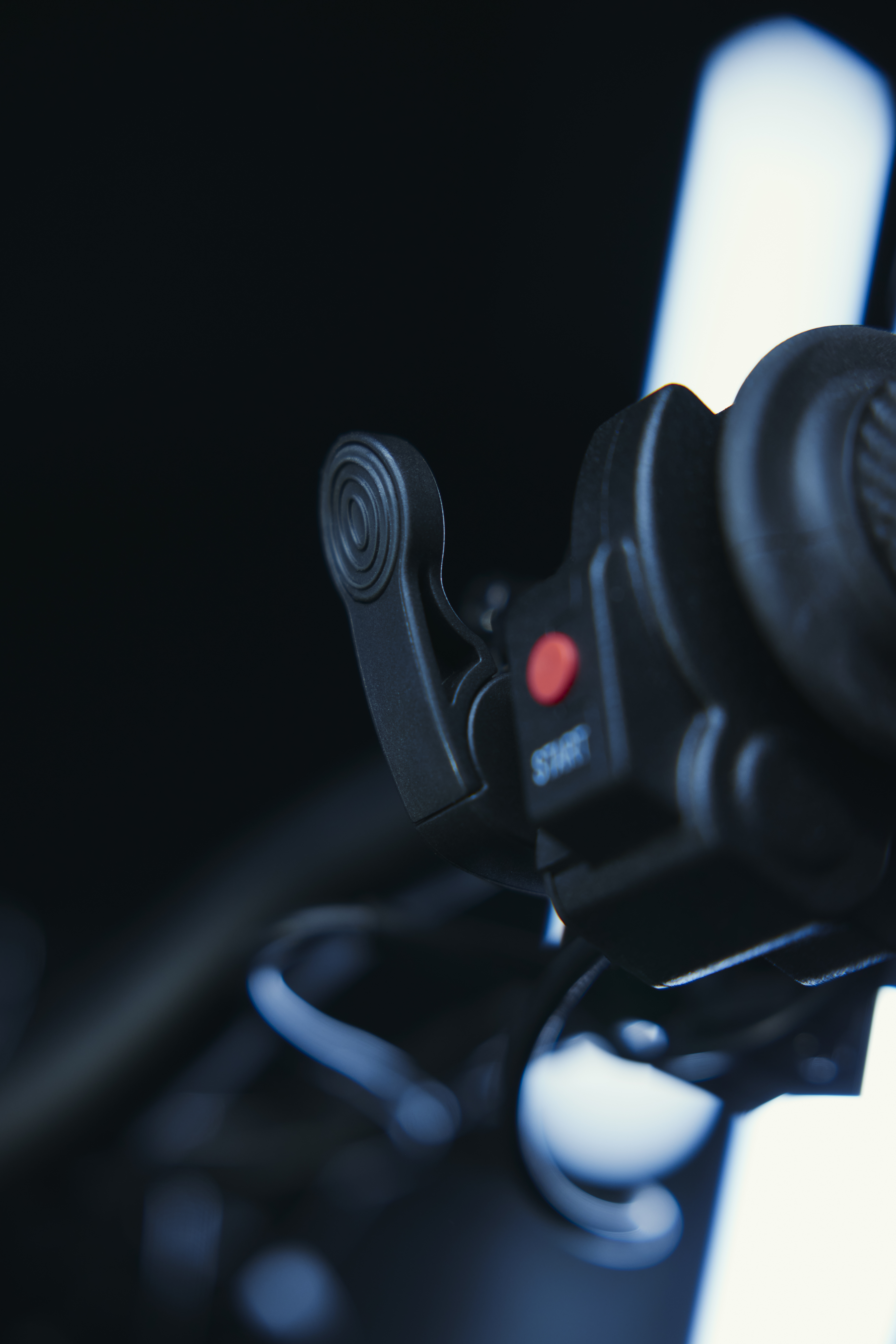

A new feature for Talaria exclusive to the MX5 that we really love, variable regenerative braking on demand.  Not only does it have 4 selectable levels of regen, for the first time in the Talaria line-up, they have included a secondary variable thumb-actuated variable regen lever.  This acts similar to a braking lever, but smoothly controls the level of regen you want on demand.  The harder you push, the more regenerative braking is engaged… without issues of over heating your rotors, increasing efficiency and range, while also preserving your mechanical braking system.  Until now, variable regenerative braking was a feature only seen on high-end custom bikes with aftermarket controllers, now a standard feature on the MX5.



More Efficient and Reliable IPM Motor

This is an IPM (Interior Permanent Magnet) motor with bigger and better magnets than ever before and a better cooling system than before. This means better efficiency, better heat dissipation, and most importantly much more reliability than the previous motor.  Magnets coming loose or demagnetized and hall sensors coming loose were the biggest causes of motor failure in the Sting/Surron.  This motor also includes a magnetic encoder which removes the need for hall sensors.

If you ever upgrade this bike with a more powerful controller this motor will handle much more power than the previous motor, and because it is more efficient you will get more power out of it. This motor will do higher RPMs than the older motors as well, and will give you a more robust power curve. It is 95% efficient which is the most efficient talaria motor ever… more efficient equates to even more power and more range in a small electric vehicle like the MX5.

72v Battery

For the first time in a Talaria eBike, they have upgraded the system voltage from 60V to 72V.  This allows for increased torque, increased speed, and cooler motor operation.  The battery is 40Ah 72v (2880 Watt hours) constructed with high performance Samsung 50s 21700 (5000mah) cells that do not compromise when it comes to putting out the high power this bike needs.  Also new for the MX5, an entirely removable battery cover which significantly increases the ease of battery removal and installation…

This battery is not just built for power but for the utmost in reliability and safety as the primary concern… a big step up over the aftermarket 72v batteries currently on the market which can quickly become dumpster fires.

Suspension

The MX5 has its own Talaria Factory Suspension that was designed specifically for this bike. The standard suspension has been revised to take the increased power and weight.  The Talaria factory rear shock is now stiffer with a 550-850 lbs/inch progressive spring which includes compression and rebound adjustments .  The Talaria factory front fork is air-adjustable and includes an internal double-spring arrangement with compression, rebound, and preload adjustments.

Gearbox

The Talaria MX5 uses a new and improved gearbox for its gear reduction with thickened mounts and reinforced gears.  This makes the Talaria Sting significantly more quiet and also more reliable (no broken belts) than Surron.  No more breaking belts or slipping belts, which will eventually break and possibly leave you stranded.  The gearbox in the MX4 was the most reliable component on the bike with very little failures. The MX5 gearbox is even more robust to handle the increased power this bike is designed to deliver.

---

Talaria MX5 Specs:

Controller Wattage: 5kw (unrestricted) 13.5KW peek(unrestricted)

Chassis Material:  6061 T4 & T6 aluminum alloy

Front Fork:  Adjustable Air + Dual Spring (220mm travel)

Rear Shock:  Adjustable 85mm

Wheel Size:  Front -1.4x19” / Rear - 1.6x19”

Tires:  FR 70/100-19 - RR 80/100-19

Max Range:  Est. 40-miles @ 25MPH

Net Weight:  160lbs (w/Battery)

Vehicle Dimensions:  73” x 30.3” x 42.8”

Brakes:  Hydraulic FR/RR improved 4-pistons

Brake Disc:  220mm x 3mm



---



Talaria MX5 Dimensions:

( CLICK HERE FOR CLOSE UP )



This bike comes in all black color with the mx5 sticker kit as an accessory that the customer can install. Talaria provides an instruction kit on how to do this and it will only take about an hour to do. The stick kit will transform the  bike to look like this:
