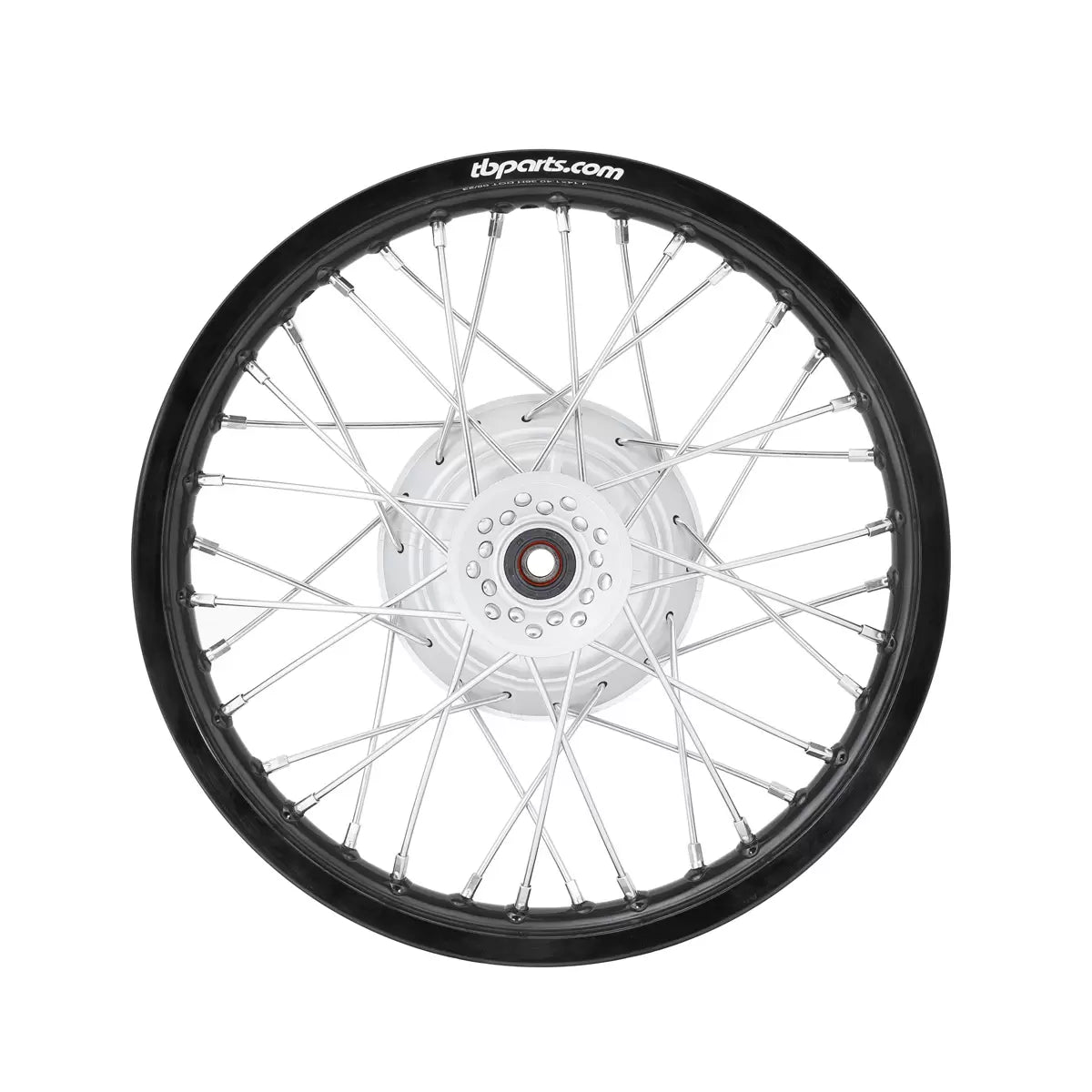

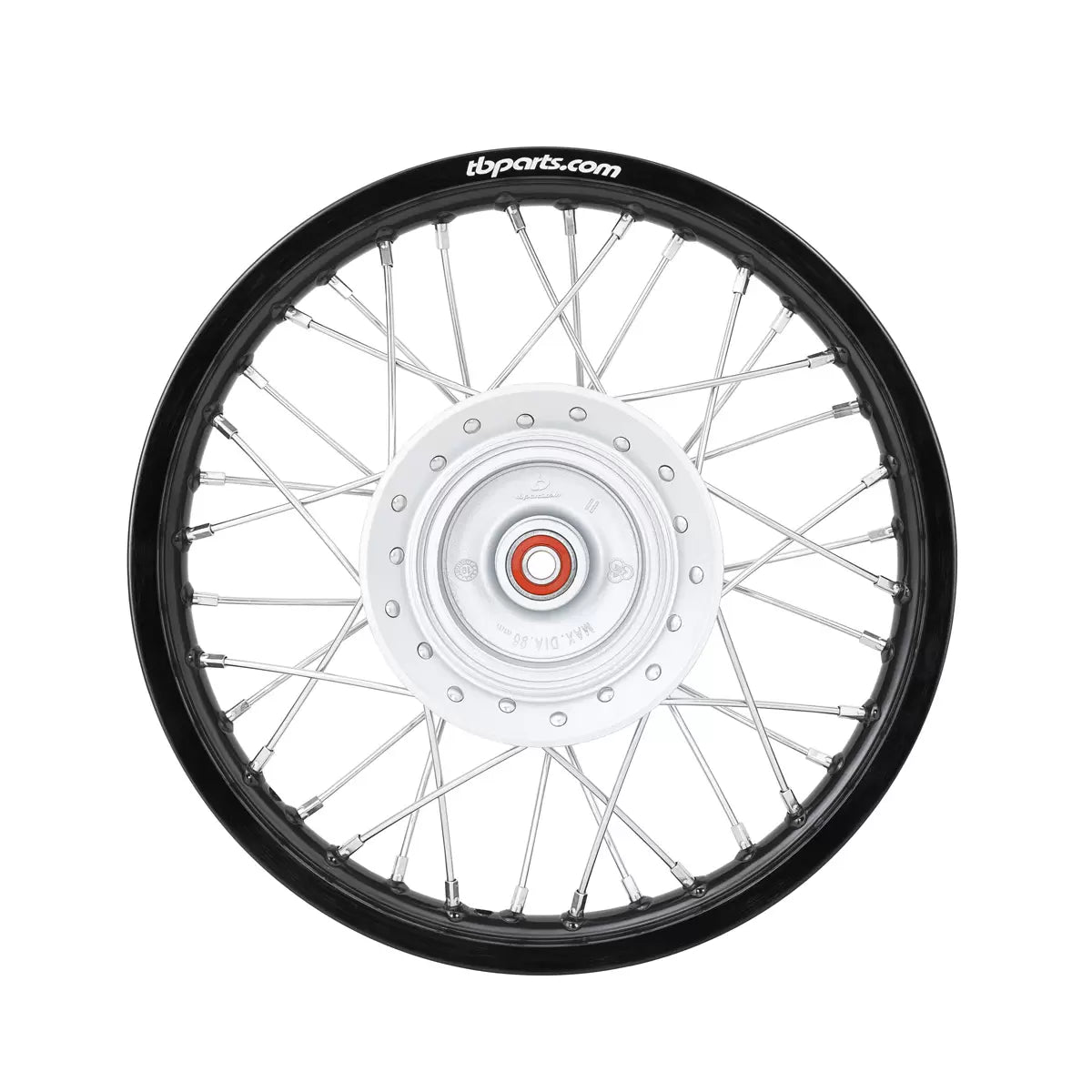

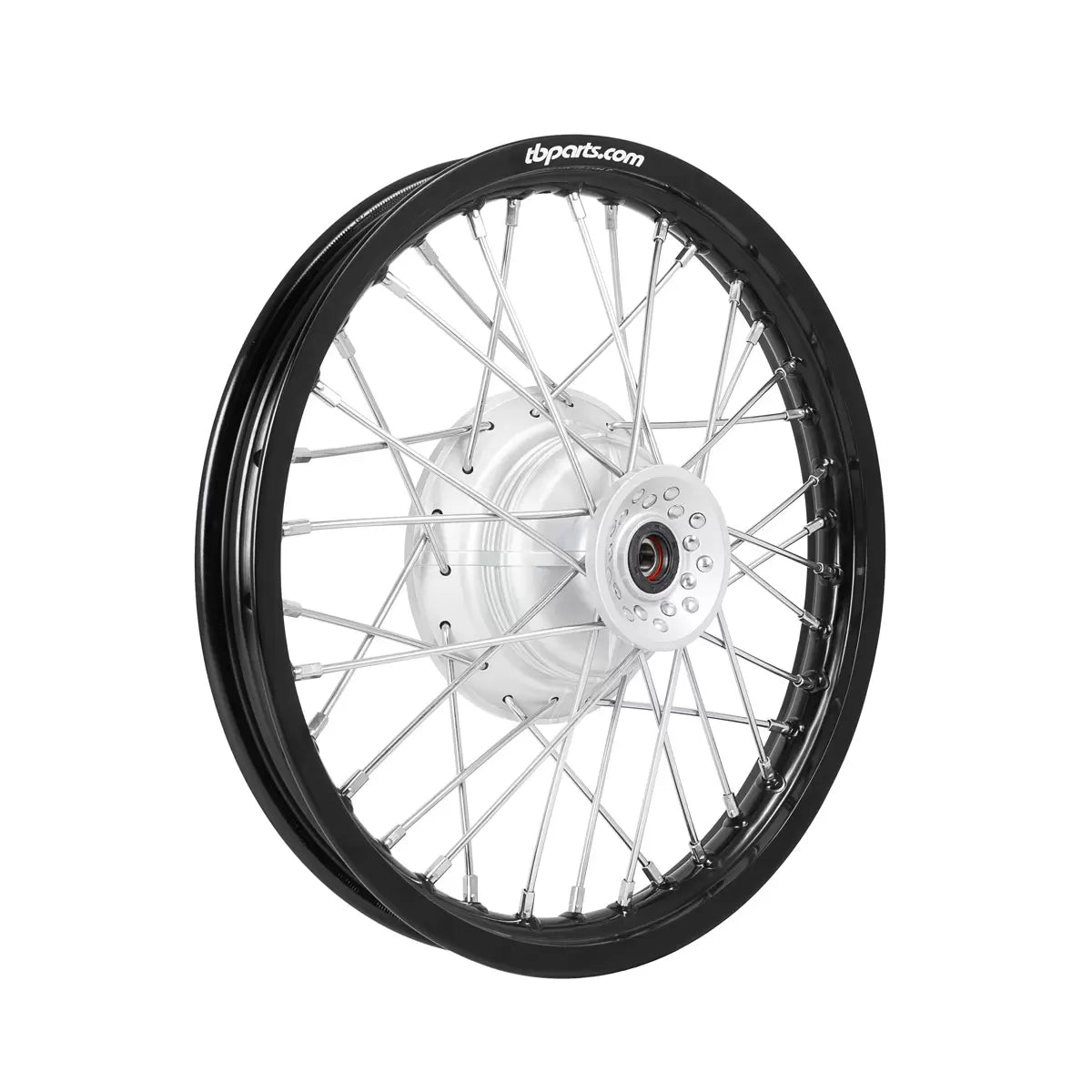

TBParts Front Wheel Assembly for Honda CRF110F (All Years) – 7050 Aluminum Rim

TBParts Front Wheel Assembly – Honda CRF110F (2013–2024+)

Stop piecing together a wheel build. The TBParts Front Wheel Assembly arrives fully laced, bearing-installed, and ready to bolt onto your CRF110 — saving you hours of labor and delivering a stronger, lighter, more weather-resistant setup than the factory steel wheel it replaces.

Aircraft-grade 7050 aluminum rim, stainless steel spokes, NTN bearings, and a cast aluminum hub with the TB logo. Everything you need, nothing you don't.

Key Features

• 7050 aircraft-grade aluminum rim – satin black finish with TBparts logo, lighter and stronger than OEM steel
• Oversized stainless steel spokes – stiffer, harder, and weather-resistant vs. stock steel spokes
• Factory-installed NTN bearings – with proper spacers, ready to run out of the box
• OEM-style cast aluminum hub – silver painted to match OEM brake panel, TB logo cast in
• Fully laced and trued – bolt-on ready, no assembly required
• Steel brake drum – painted for rust protection during storage; wears in naturally with use

Specifications

• Brand: TBParts
• SKU: TBW1622
• Rim size: 14 × 1.4"
• Position: Front
• Weight: 3 lbs
• Country of Origin: USA

Fitment

• Honda CRF110F – All years (2013–2024+)

Installation Notes

1. Re-torque axle nut after first 15 minutes of ride time. Recommended: Front 15 ft-lbs / Rear 19 ft-lbs (or OEM spec: Front 32 ft-lbs / Rear 47 ft-lbs). Check and adjust chain at the same time.
2. Check spoke tension after 1 hour of ride time. Keep spokes tight for maximum wheel life. True as needed.
3. Brake drum is painted for storage rust protection — will wear in naturally once ridden.
