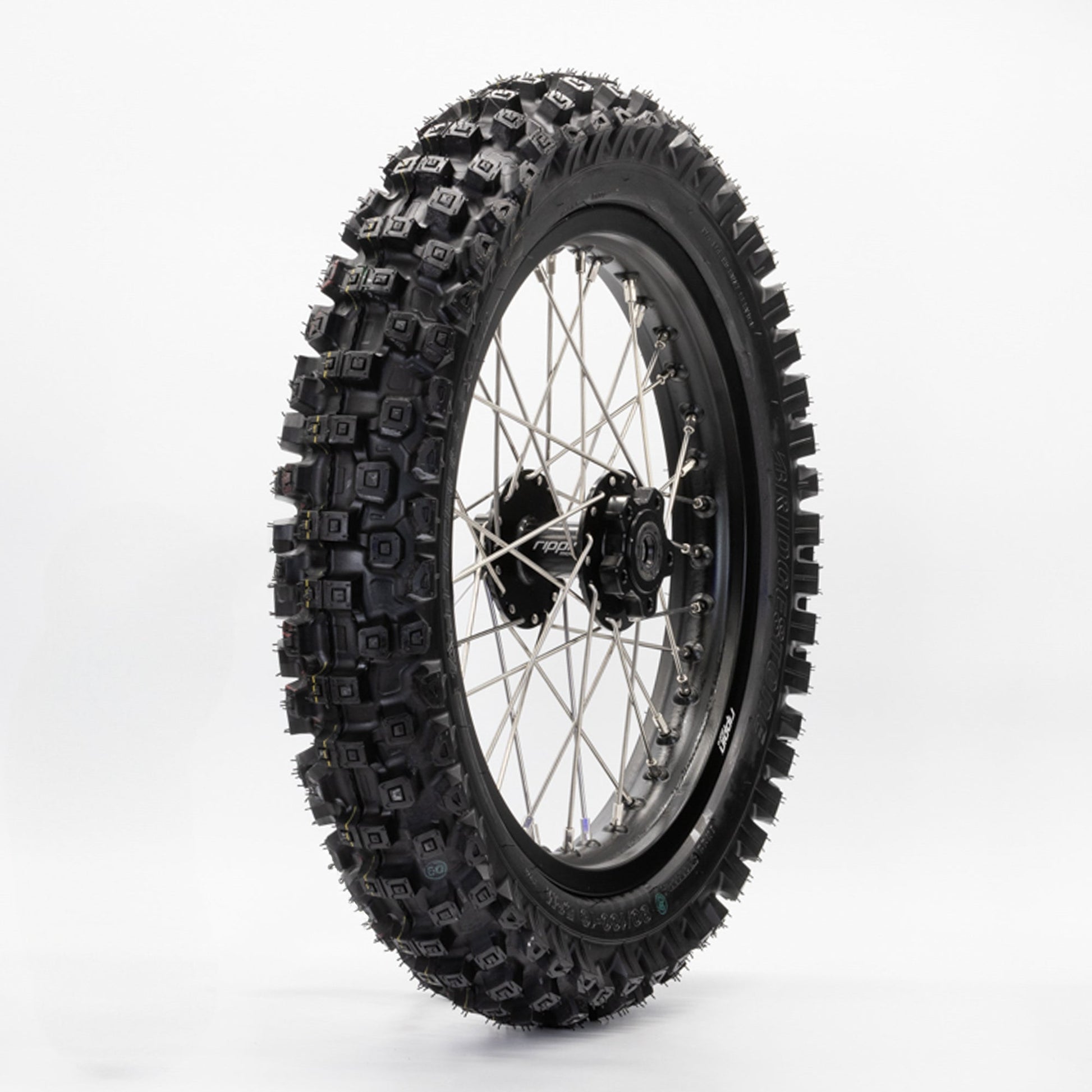

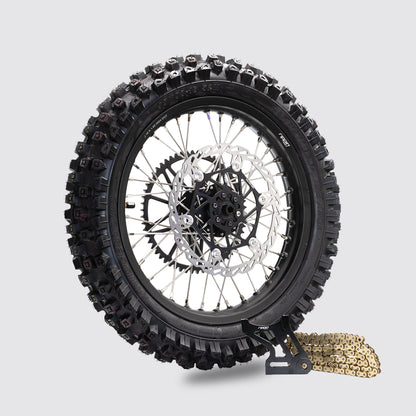

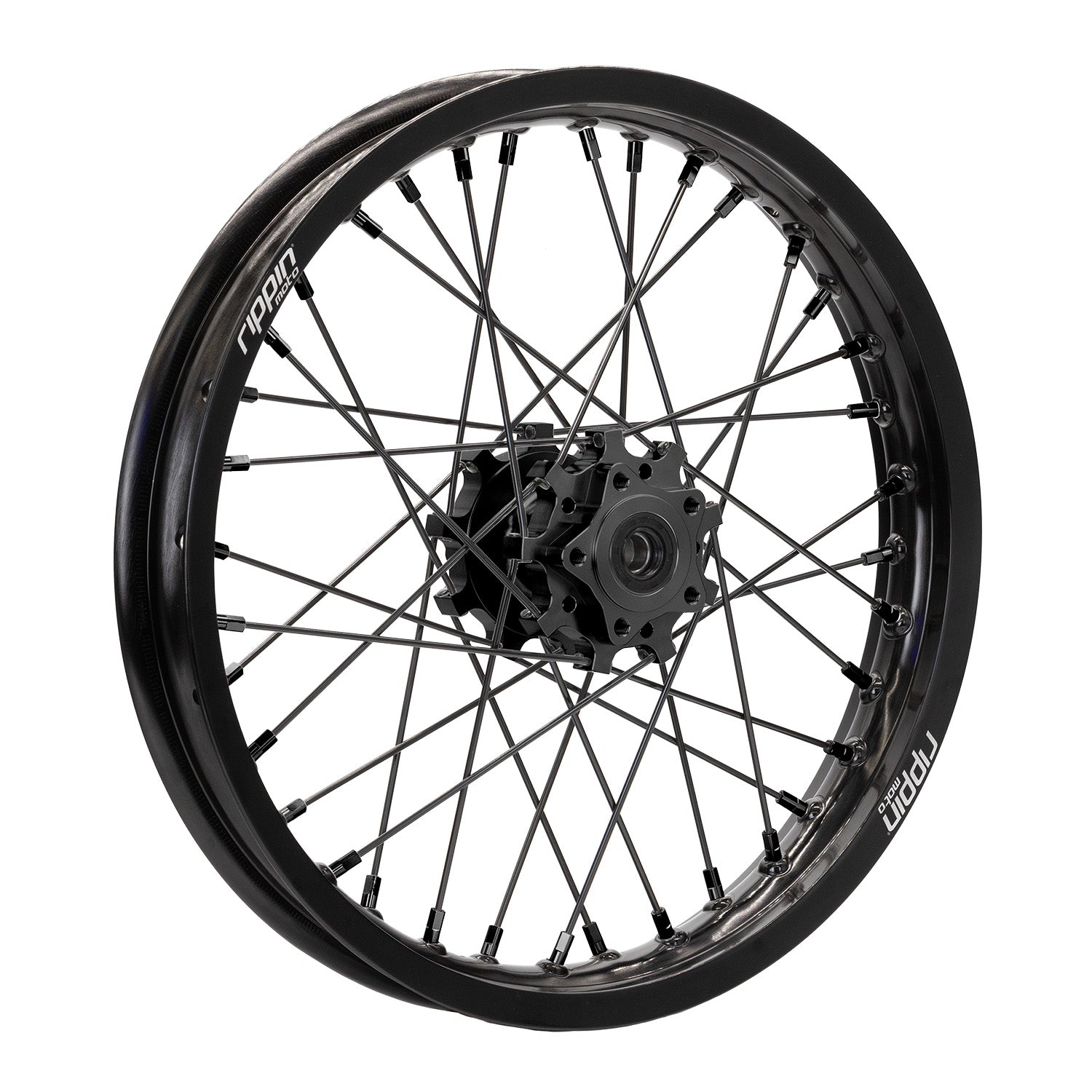

16" Rear Wheel for E-Ride PRO & Sur-Ron LBX

Our E-Moto 16" rear wheel is the perfect off-road upgrade for your Surron LBX or E-Ride PRO SS allowing you to run wider more aggressive off-road motocross tires for enhanced traction. Our E-Moto wheel sets are laced with 4 extra spokes (36 total vs 32 OEM) made from a high quality (65Mn/⌀3.0mm) stainless steel for considerable added wheel strength.

Crafted with precision and attention to detail, our rims are made from high quality 7116-T6 aluminum alloy using a proprietary 3-stage heat treatment process and powder coated for durability and scratch resistance.

Key Features:

• High-grade, durable 7116-T6 series aluminum anodized rims
• 3-stage heat-treated rims, powder coated for maximum strength & durability.
• Aircraft grade 6061-T6 CNC aluminum hubs.
• 36 Spoke Construction (vs. 32 OEM)
• Stainless steel 65Mn, ⌀3.0mm spokes

Compatibility:

• Surron Light Bee X
• E-Ride PRO SS
• 79 Bike

Specifications:

Rear Wheel Only:

• Wheel Size: 16" x 1.85"
• Rim Material: Heat Treated 7116-T6 Aluminum
• Hub Material: CNC 6061-T6 Aluminium
• Hub Disc Hole Pattern: 6x58mm

• Spokes: (36 Total) Stainless Steel 65Mn/ ⌀3.0mm

Tire Recommendations:

• Bridgestone Battlecross 90/100-16*
• Tusk T-35 90/100-16**

IMPORTANT: Please note that tires are not included. Our wheels do not come "dished" or off-set to accomodate extra chain clearance so some tire trimming may be required depending on your setup. With the wider 90/100-16 off-road tires we highly reccomend going with a chain spacer kit (+4mm) on the front/rear sprocket. This eliminates the need for most tire trimming.

*No trimming with chain spacer kit

**Some trimming required with chain spacer kit

Every component, from the spokes to the nipples has been carefully selected and rigorously tested to deliver long-lasting performance. All of our wheels are manufactured to ISO9001 standards, and come pre-assembled torqued to spec.

All wheels are carefully wrapped for protection during shipping. Rims are protected with molded foam, hubs are bubble wrapped and protected with an additional zip-tied protective cover to prevent rubbing during transport.

Warranty:

Each wheel set is backed by a 12-month warranty on standard wear and tear, giving you peace of mind as you tackle the trails.
