Warp 9 Transformer Direct Bar Mount Stem – CNC 7075-T6 Aluminum for MTB Fork Conversions

The Warp 9 Transformer Direct Bar Mount Stem is a precision-engineered bar clamp solution for riders converting mountain bike forks to moto-style handlebar setups. CNC machined from 7075-T6 aluminum, it delivers OEM-level fitment with improved ergonomics and adjustable height configurations.

Key Features

• CNC machined from 7075-T6 aluminum for maximum strength-to-weight ratio
• Moves bars 10mm forward for improved rider positioning
• OEM height in low position; add included spacer for +20mm height over stock
• Fits MX bars with included 28.6mm shims
• Fits OEM and Warp 9 bars in 31.8mm size

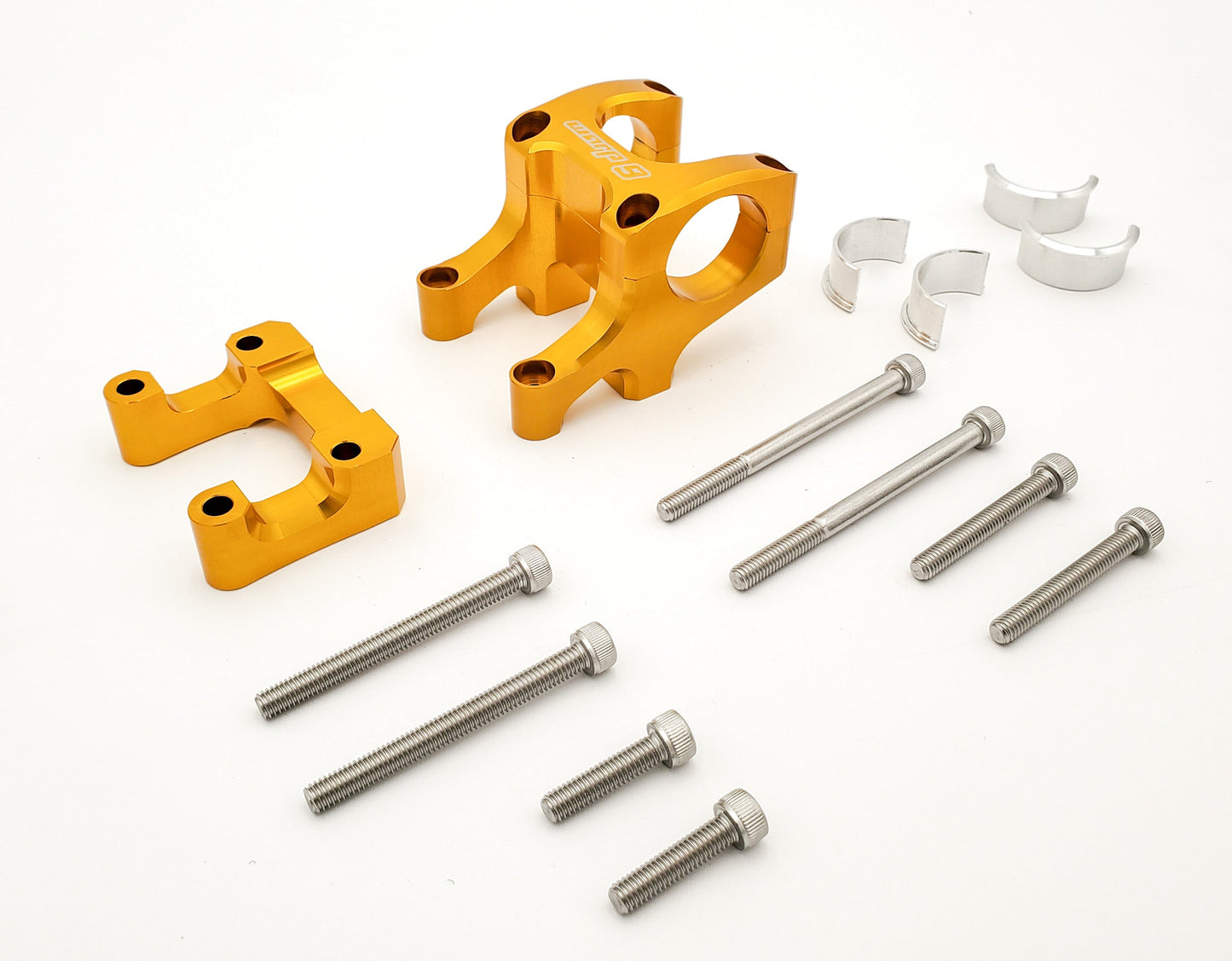

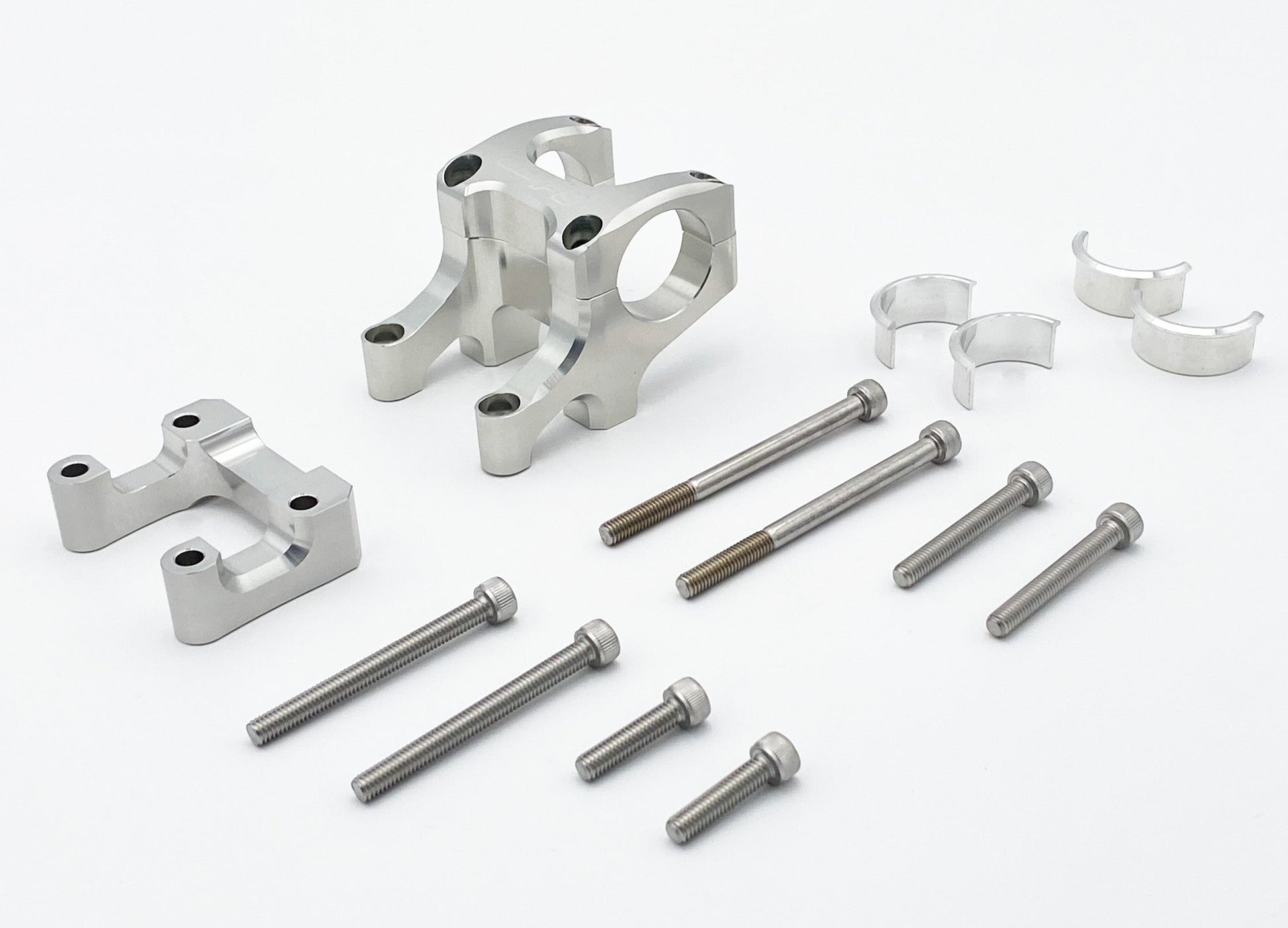

• Bolts included for both low and high configurations
• Available in 7 anodized colors: Silver, Black, Red, Blue, Magnesium, Gold, Purple

Fork Compatibility

Compatible with standard 4-bolt downhill MTB top triple clamp forks including:

• Fox
• Manitou
• EXT MX
• RST
• DNM
• DVO
• KKE

Weight

Approx. 1.0 lb per unit (all color variants).

Installation Note

Once the OEM steer bar mount is removed, you will need steer tube spacers to take up the difference. Use the Warp 9 Stem Lock (includes steer tube spacers) or source aftermarket spacers to complete the installation.

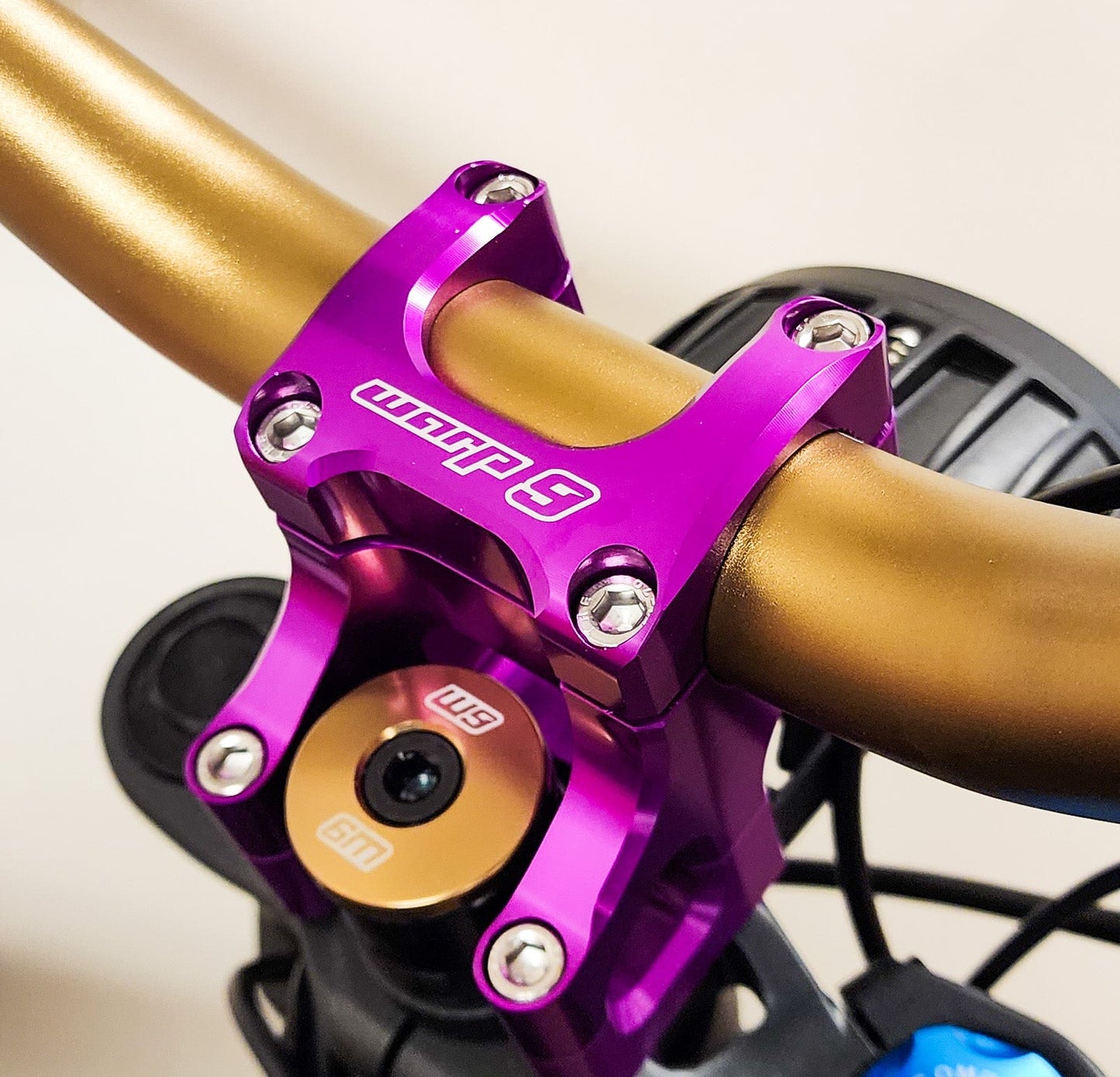

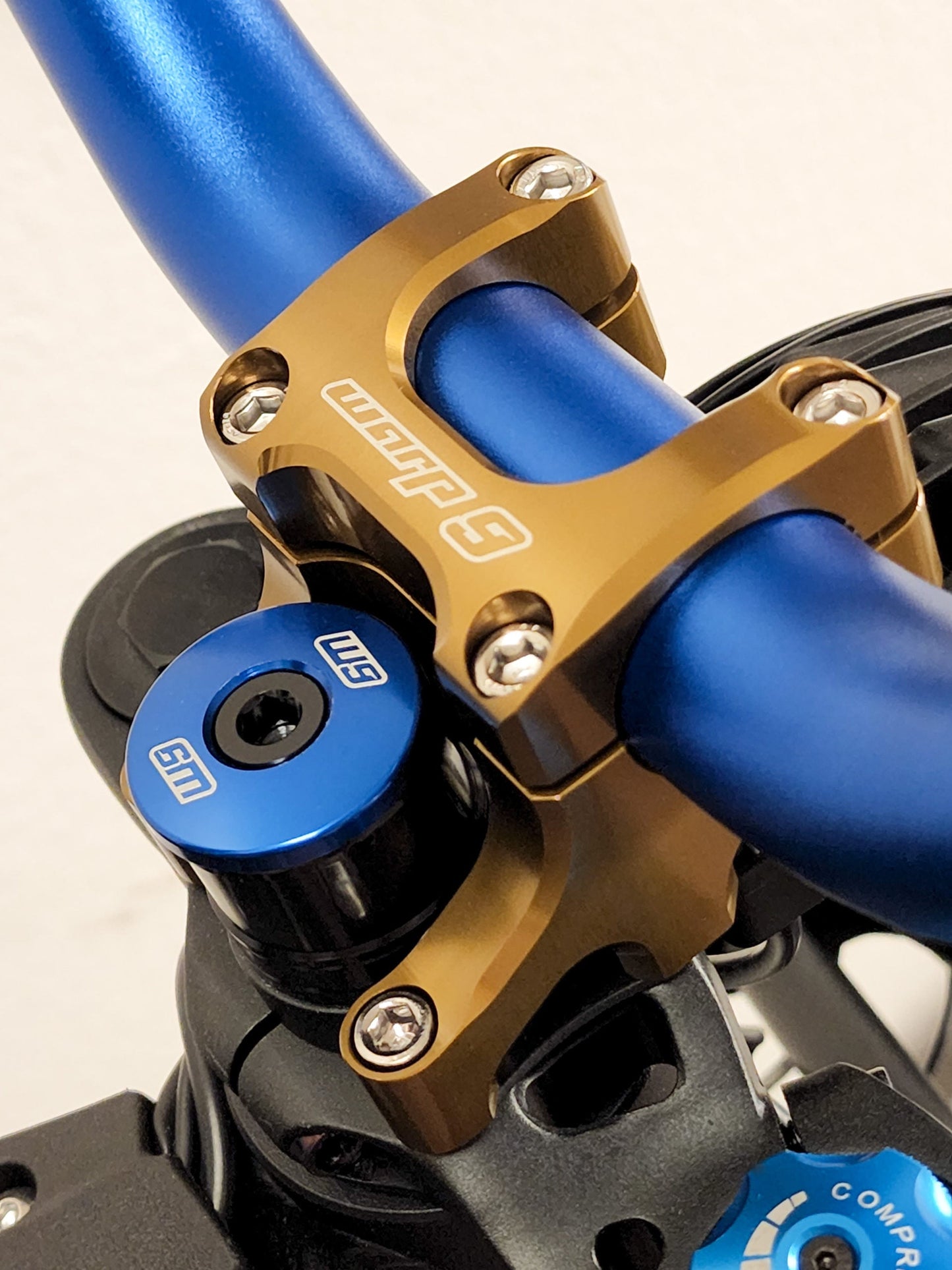

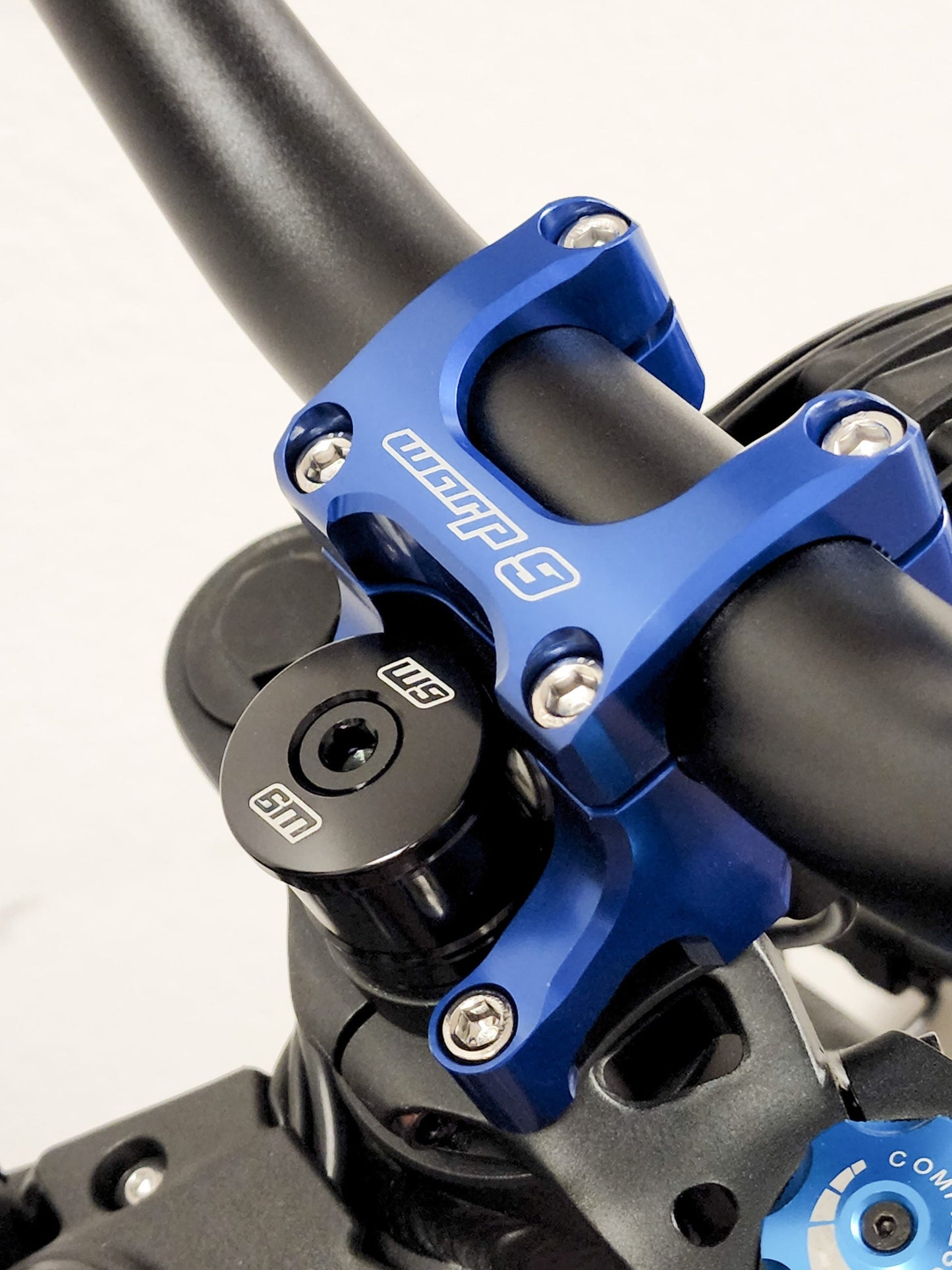

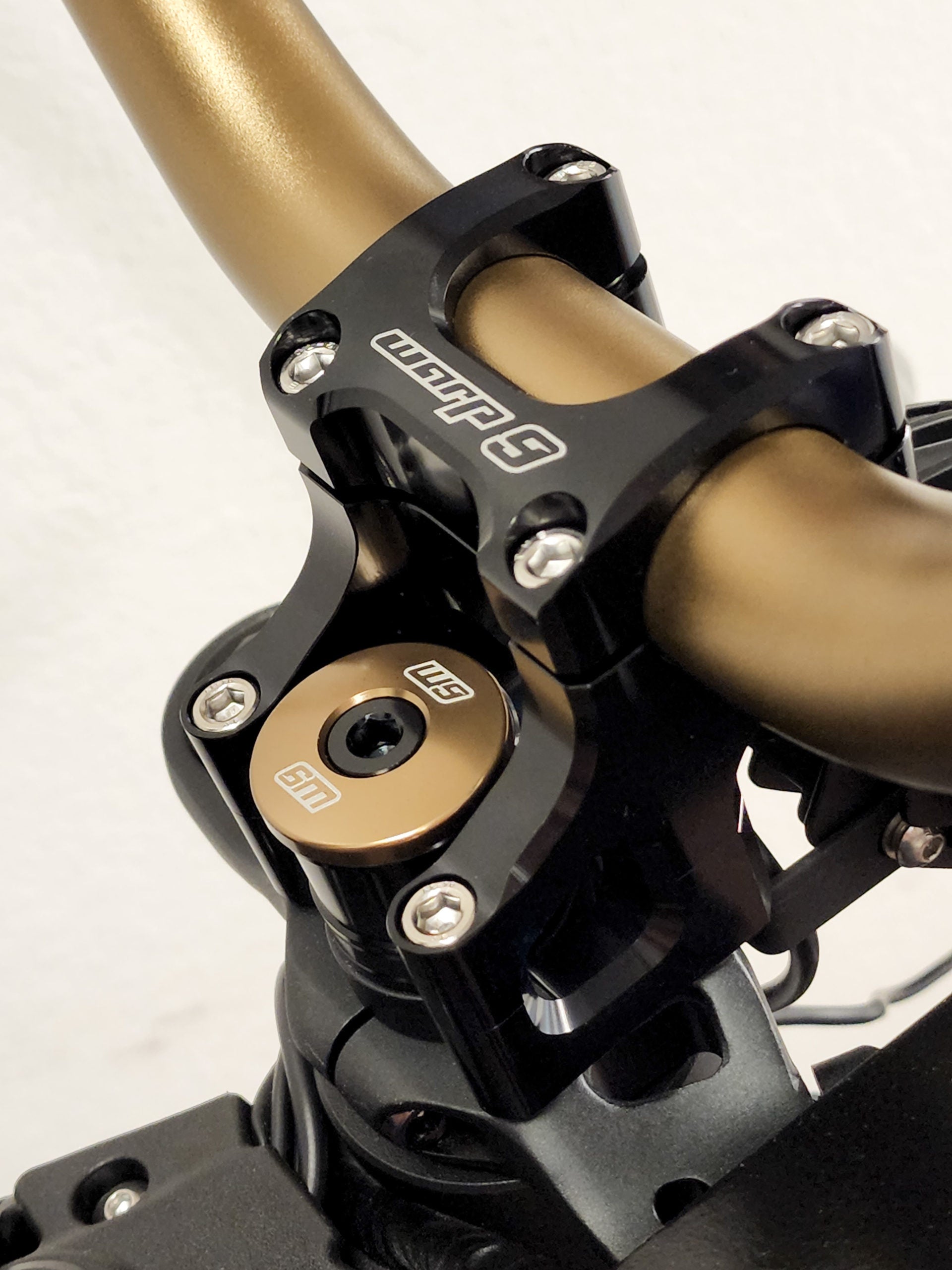

Shown with optional Titanium Bolt (Burnt Blue), optional Warp 9 Steer Lock, and optional Warp 9 3" bars.
