RFN Ares DLX Electric Dirt Bike 74V 43AH

RFN Ares DLX Electric Dirt Bike 74V 43AH

SKU:

Regular price $4,299.00 USD
Regular price $5,199.00 USD Sale price $4,299.00 USD
Sale Sold out

Not in stock in our warehouse - Will email after purchase with lead time

Experience the exhilarating power and precision of the Ares Rally by RFN Bikes. This remarkable electric bike is meticulously engineered to conquer the most challenging terrains with unmatched style and performance. From rugged trails to steep inclines, the Ares Rally fearlessly takes on any adventure with its robust yet lightweight frame, ensuring durability and maneuverability like no other.

The Ares Rally features a 43ah 74v battery and power system with an impressive peak power range of 12.5kw ,providing great speed and torque. With its cutting-edge suspension system, every ride becomes a seamless and comfortable experience, effortlessly absorbing shocks and bumps while providing optimal control.

Embrace the spirit of adventure and redefine what's possible with the Ares Rally by RFN Bikes. Whether you're a seasoned off-road enthusiast or a thrill-seeking adventurer, this bike will elevate your riding experience to unprecedented levels. Discover the freedom, power, and thrill of off-road exploration like never before with the Ares Rally.

POWER

 11-58T Max Torque 305 N·m (Max Torque of rear wheel: 305 / N-m Top speed: 75 km/h)

Battery

 74V / 2480Wh, LG Premium 21700 lithium cells, removable, can be charged on a bike or separately.

Brakes

Front and Rear 4-piston hydraulic disc, 210mm

Charging

 2-3h with Quick Charge Function

Controller

 Sine wave, Best-in-class power density, and state-of-the-art motor control algorithms.

Electric motor

 Air-cooled Permanent Magnet Synchronous Motor, energy regeneration function, Direct drive, 420

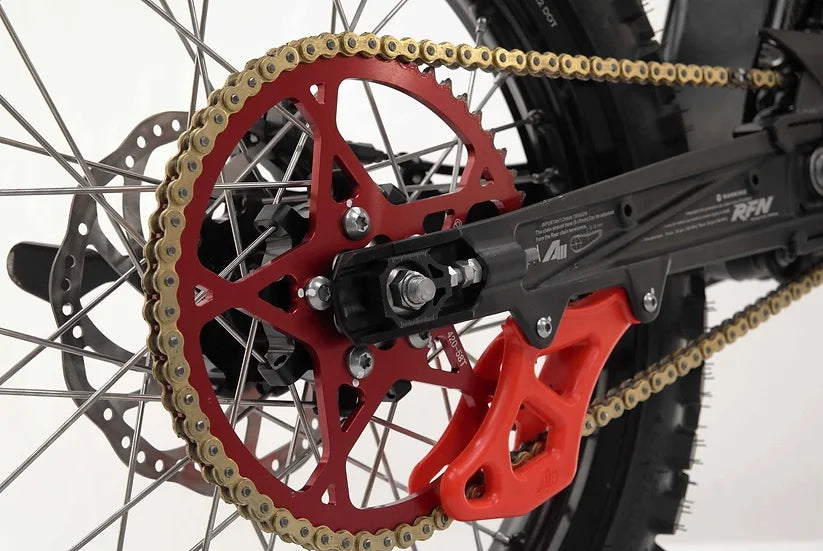

Drivetrain

Electric motor: Air cooled Permanent Magnet Synchronous Motor, energy regeneration function, Direct drive, 420 chains with DX

Sprocket: 13T-58T

Rated power: 5 kW

Peak power: 12.5 kW**

Max Torque of motor: 58 N·m

Max Torque of rear wheel: 305 N·m

Dimensions

Fork angle: 340mm - 13.39''

Offset: 15mm in triple clamps, 45mm in forks.

Seat height: 860mm - 33.86''

Trail: 111mm - 4.37''

Wheelbase: 1330mm - 52.36''

Fenders & Bodywork

Material: PP/ABS plastic

Frame

Build: 6082 aluminum extruded, forged, CNC machined, and steel frame.

Front Suspension

Upside Down, 200mm travel, Fully adjustable

Handlebar

6061 aluminum, 760mm length

Handlebar

6061 aluminum, 760mm length

Rear Suspension

Mono-Shock, 74mm travel, adjustable

Regulatory

Certificate: CE

Ride modes

Mode 1: Tortoise mode: The ultimate mode of energy conservation exploration. Limited to 25 km/h with 3.5 hours battery range.

Mode 2: Rabbit mode: Enduro or active trail riding. 1-2 h riding time.

Mode 3: Rocket mode: Track and race mode, maximal torque and speed, riding time up to 9 Sec.

Mode 4: Reverse mode: Limited to 9 km/h.

Speed & Range

Range: 160 Km  (Test data Load: 75 Kg, 20 Km/h uniform speed, ambient temperature: 25 °C, flat pavement, standard tires, standard tire pressure)

Top speed: 65km/h

Weight

N.W of Battery: 15 kg

N.W of whole bike: 68 kg

Max load: 120kg

Wheels & Tires

Hubs: Forged and CNC aluminium RFN hubs with 20mm axle.

Rims: F 19"/ R 18" (Motorcycle standard) re-inforced, triple chamber, 7050 aluminium.

Tires: F: CST CM721 70/100-19 off-road , R: CST CM722 90/100-18 off-road
