Warp 9 Bar Mount

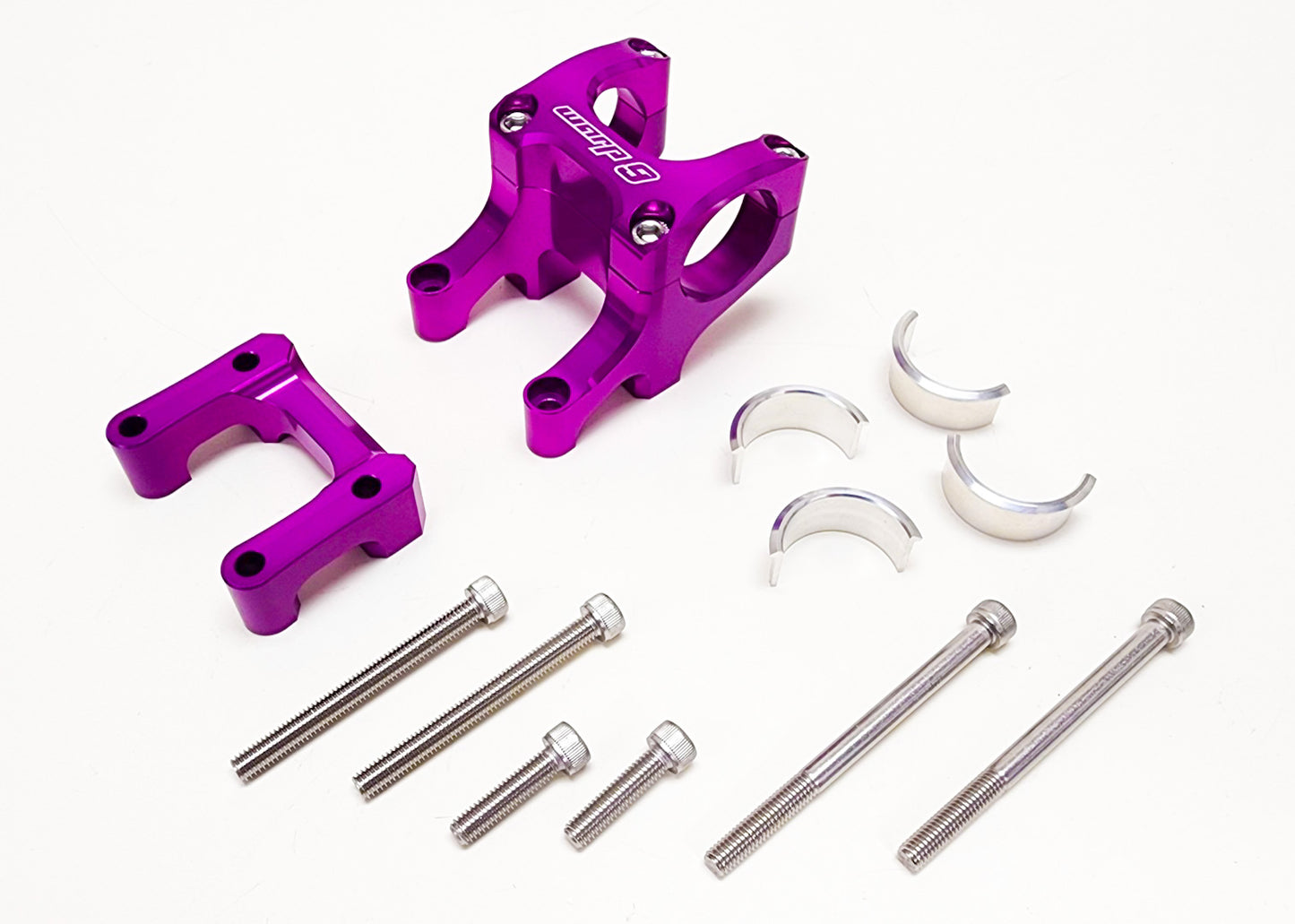

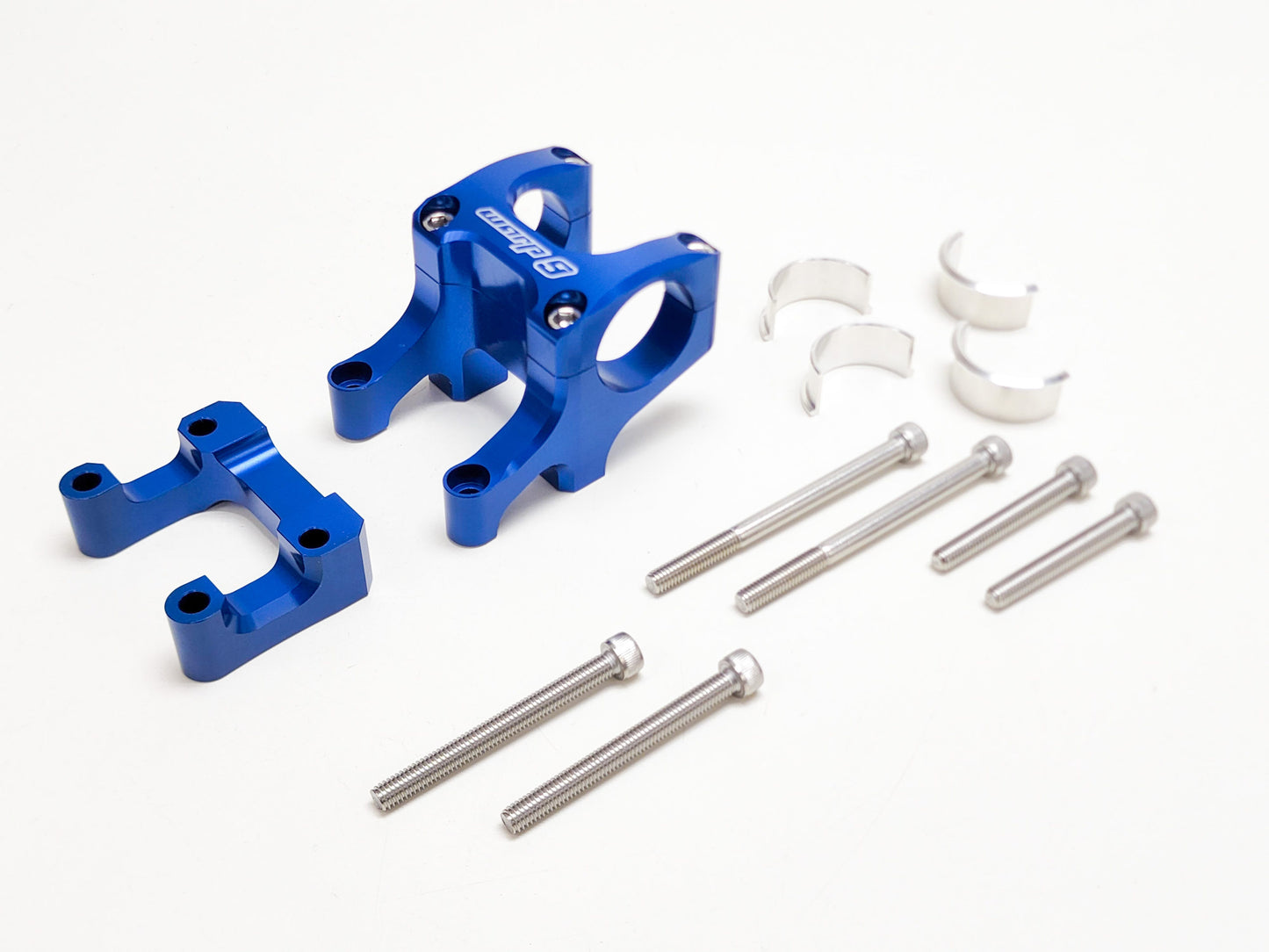

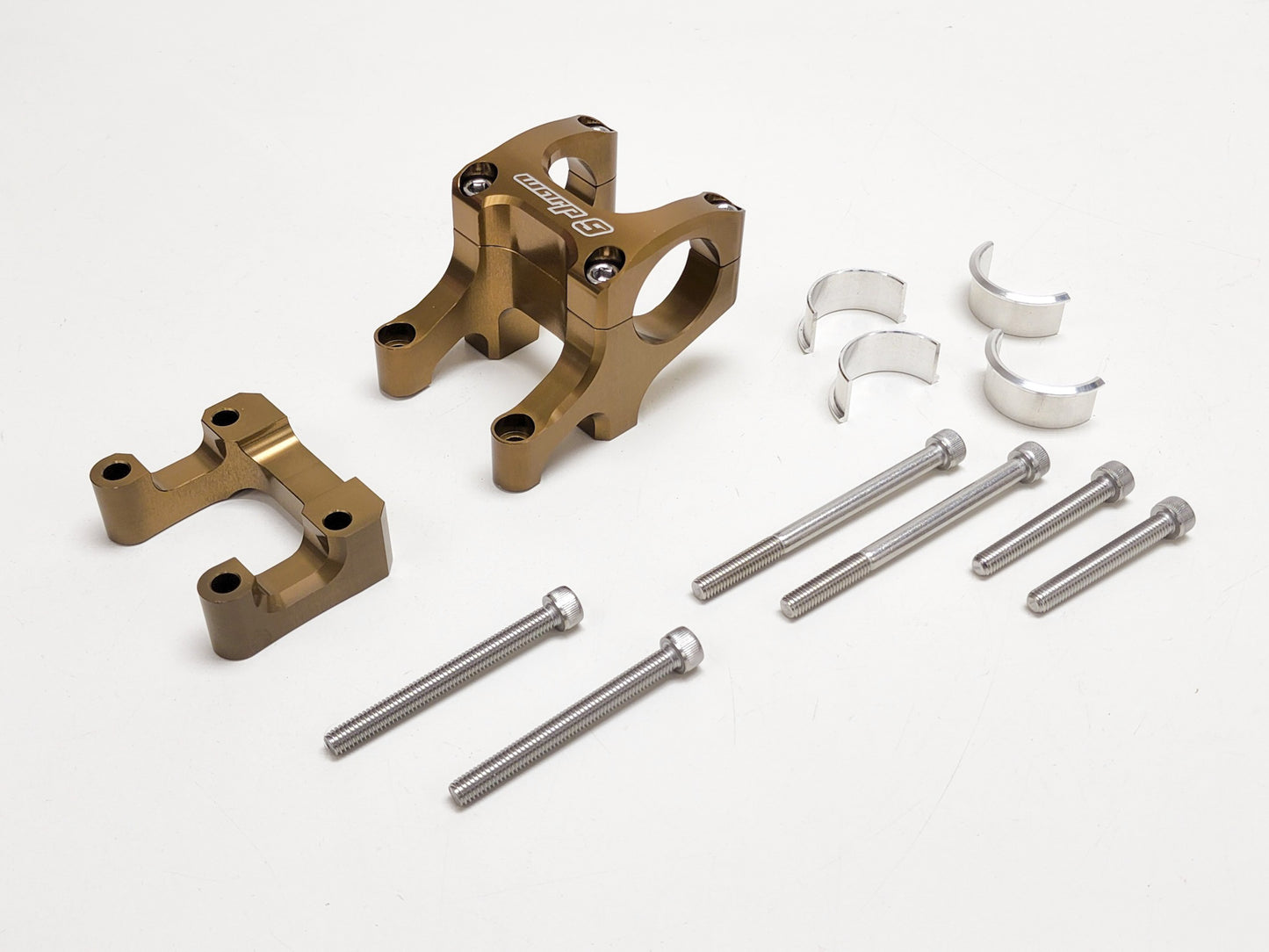

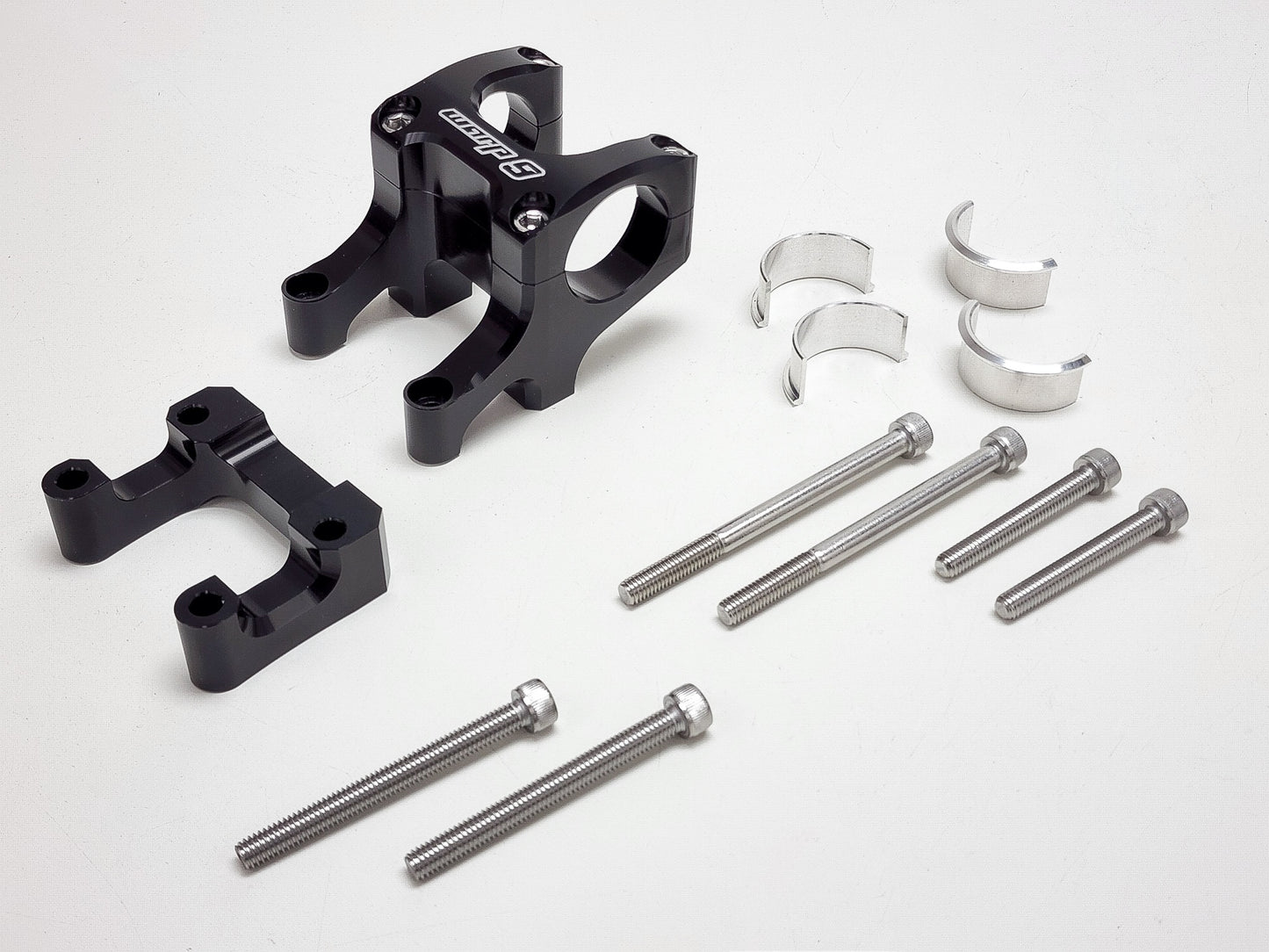

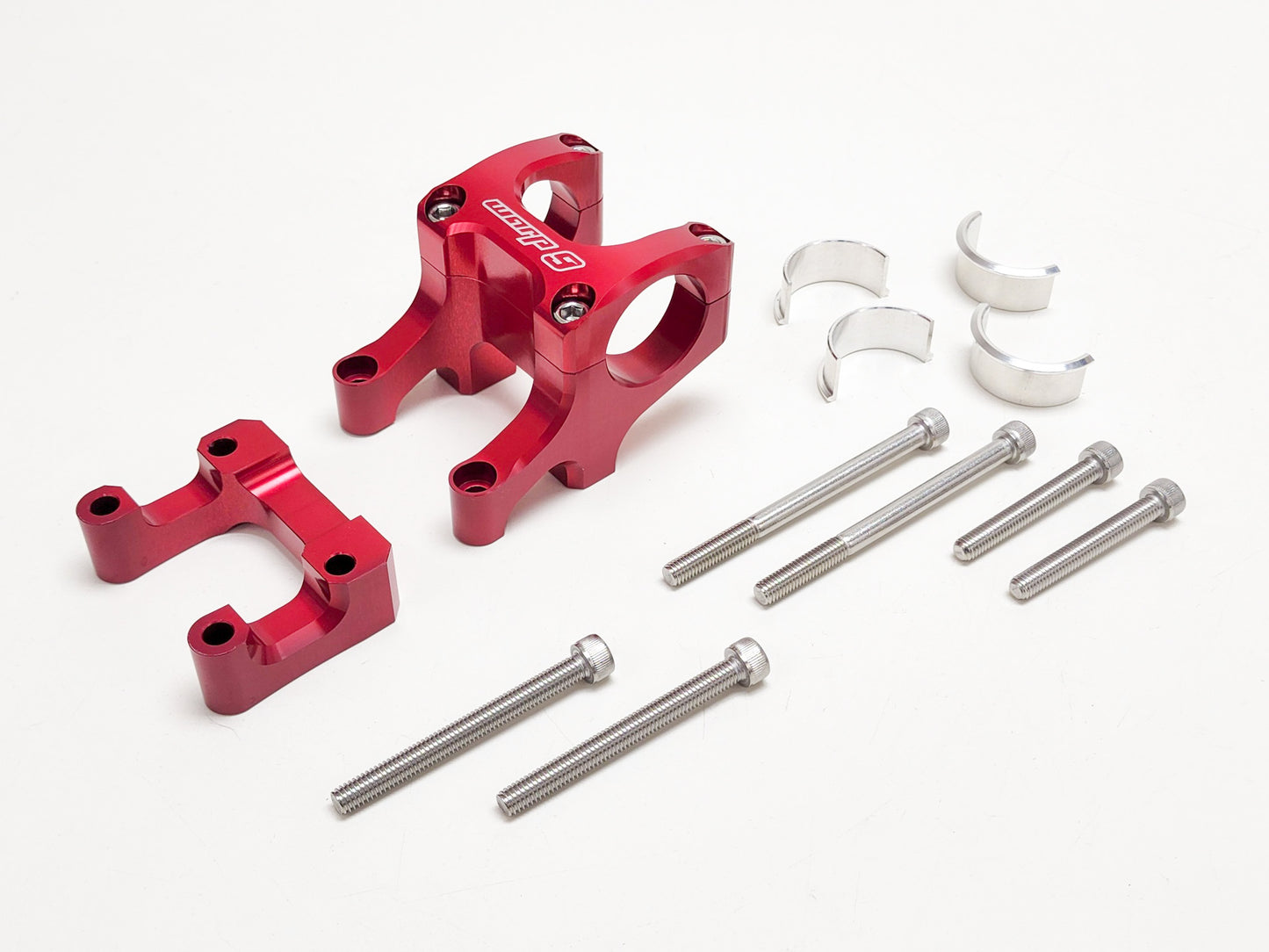

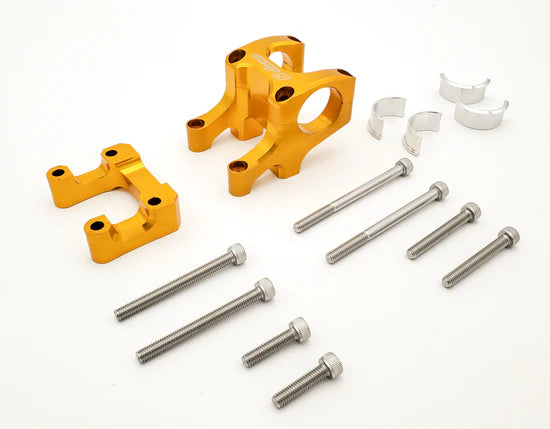

TRANSFORMER DIRECT BAR MOUNT STEM

• CNC Machined from 7075T6 aluminum
• Fits MX bars with the included 28.6mm shims
• Fits Oem and Warp 9 Bars in 31.8m size
• Moves Bars 10mm forward
• OEM height in low position
• Add the included spacer to gain 20mm height over stock
• Bolts included for both low and high configurations
• Fits Fox, Manitou, EXT MX, RST, DNM, DVO & KKE forks with standard

   4 bolt downhill MTN bike top triple clamp

• NOTE: once the oem steer bar mount is removed you will need to get  1 ⅛ steer tube spacers for the oem steer tube to take up the difference of the old bar mount difference. You can use the Warp 9 Steerlock which includes steer tube spacers or source new steer tube spacers aftermarket to complete the installation.

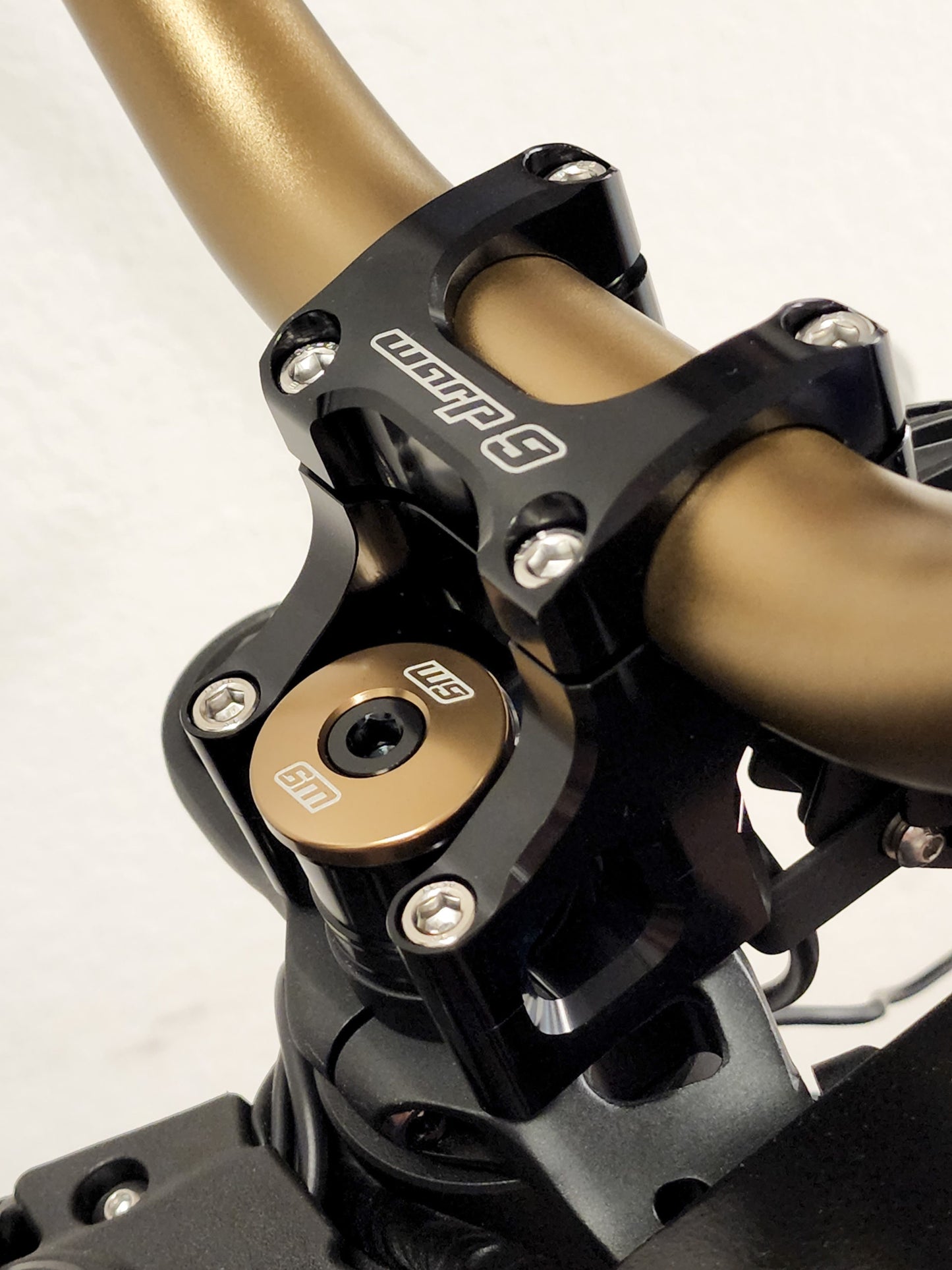

• Shown with optional Titanium Bolt (Burnt Blue)
• Shown with optional Warp 9 Steer lock
• Shown with optional Warp 9 3” bars
